Phone assembly

Phone assembly

How to install the battery, SIM, and memory card (for applicable devices).


INSTRUCTIONS & INFO

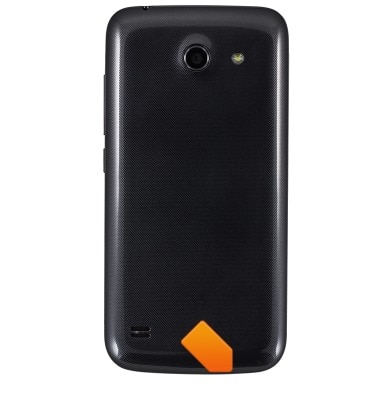

  1. Remove the battery cover by using the notch at the bottom of the device.
    device 2684/1313483.jpg

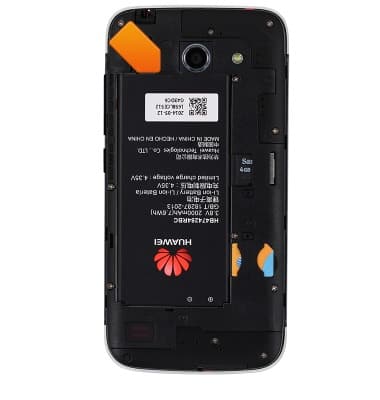

  2. Remove the battery using the notch at the top of the battery bay.
    device 2684/1313484.jpg
  3. With the battery removed, place the microSIM card into the SIM-card tray with the gold contacts facing down.
    device 2684/1313467.jpg

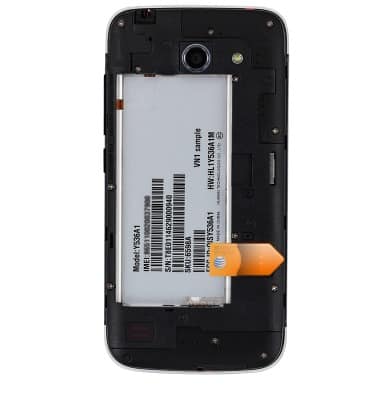

  4. Push the SIM-card into the SIM-card tray.
    device 2684/1313468.jpg

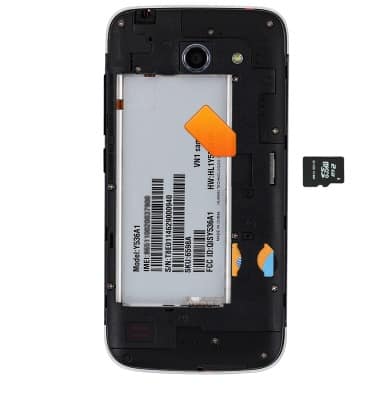

  5. Place the microSD card into the microSD card tray, making sure the old contacts are facing down.
    device 2684/1313469.jpg

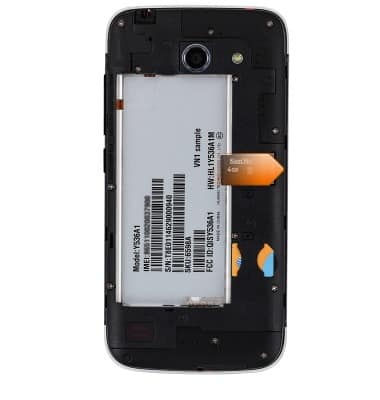

  6. Push the microSD card, into the microSD card tray all the way.
    device 2684/1313470.jpg

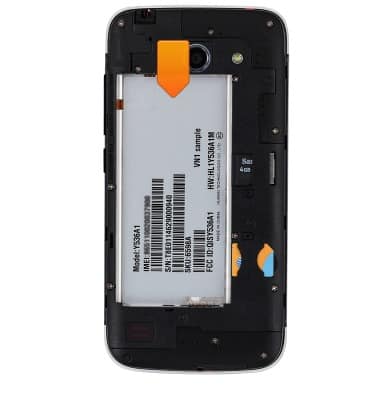

  7. Place the battery into the battery bay.
    device 2684/1313471.jpg

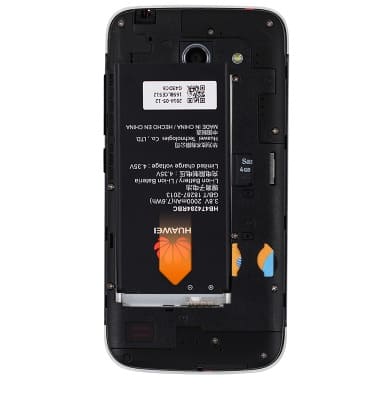

  8. Slide the battery into place, making sure the gold contacts on the battery align with the gold contacts on the device.
    device 2684/1313472.jpg

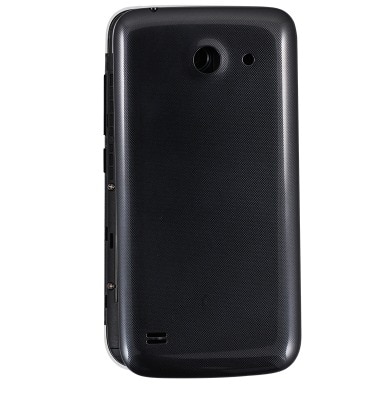

  9. Line up the battery cover with the back of the device.
    device 2684/1313475.jpg

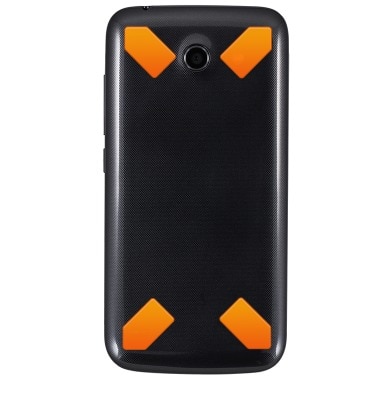

  10. Press down on all four corners to seat the rear cover in place.
    device 2684/1313476.jpg
