Device layout

Device layout

Provides an overview of the device layout.

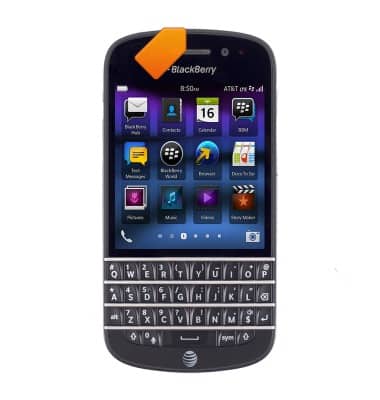

  1. Press the Power/Lock key to lock the screen. Press and hold the key to turn the device on or off.
    device 2661/1001283219.jpg

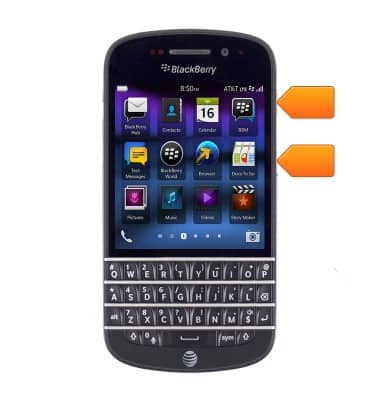

  2. Press the Volume keys to adjust the volume.
    device 2661/1001283220.jpg

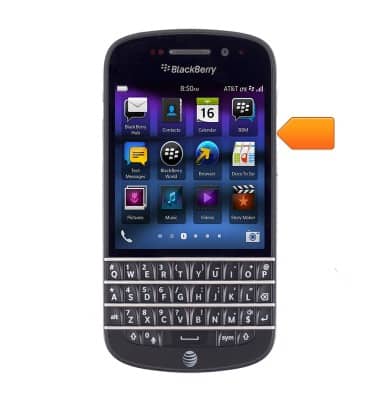

  3. Press the Voice control key to use the voice command.
    device 2661/1001283221.jpg

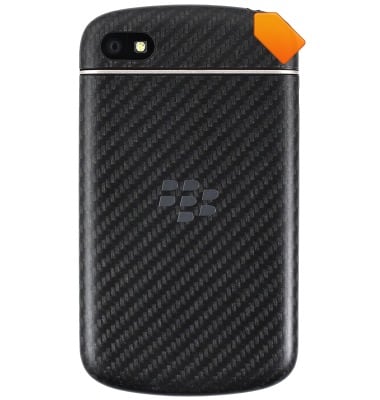

  4. The Headphone jack is located on the top of the device.
    device 2661/1001283234.jpg

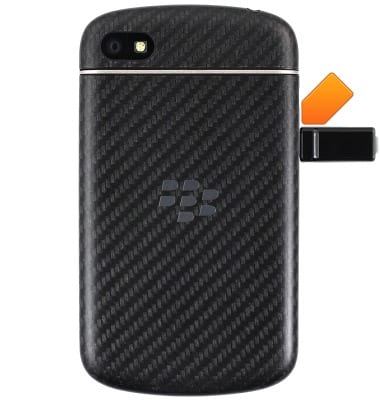

  5. The microUSB/Charger port is located on the side of the device.
    device 2661/1001283236.jpg
  6. The SIM card slot is located beneath the battery.
    device 2661/1001283238.jpg

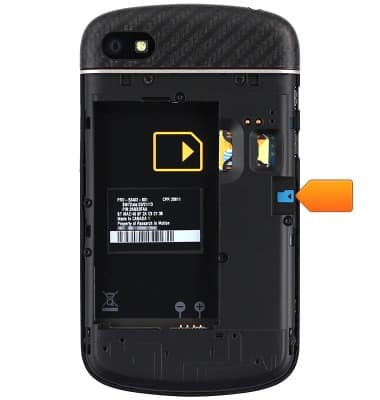

  7. The microSD card slot is located on the side of the device.
    device 2661/1001283240.jpg
