Device layout
Which device do you want help with?

Device layout

Provides an overview of the device layout.


INSTRUCTIONS & INFO

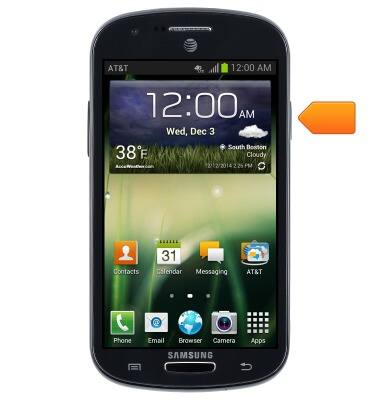

  1. The Power/Lock key is used to power the device on and off, as well as locking and turning the screen on and off.
    device 2827/1429982.jpg
  2. The Volume keys are used to adjust the device volume up and down.
    device 2827/1429983.jpg

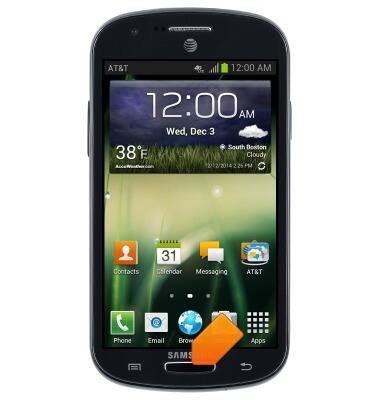

  3. The Home key is used to return to the home screen. When quickly pressed twice, it activates S Voice.
    device 2827/1429984.jpg

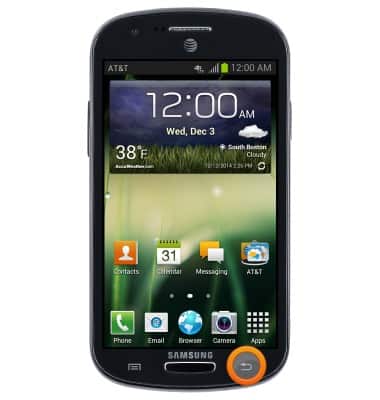

  4. The Back key is used to return to the previous screen.
    device 2827/1429985.jpg

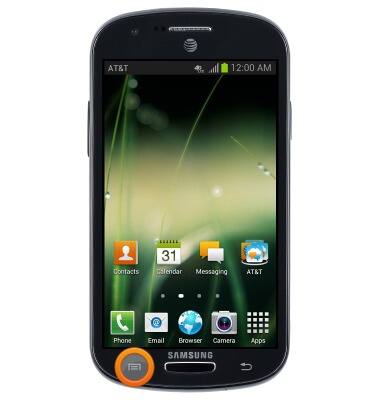

  5. The Menu key is used to view the menu of an app. When the Menu key is held, it opens a menu with context sensitive options.
    device 2827/1429986.jpg

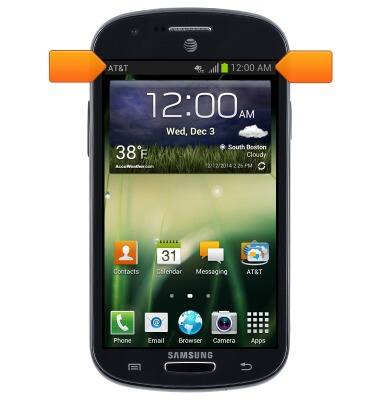

  6. The Notifications Bar displays the device status, along with notification information.
    device 2827/1429987.jpg
  7. The Headphone jack is located on top of your device.
    device 2827/1462573.jpg

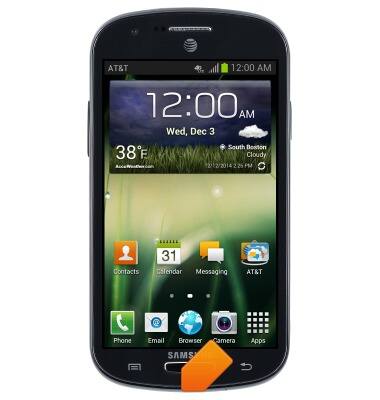

  8. The microUSB/Charging port is located on the bottom of the device.
    device 2827/1462576.jpg

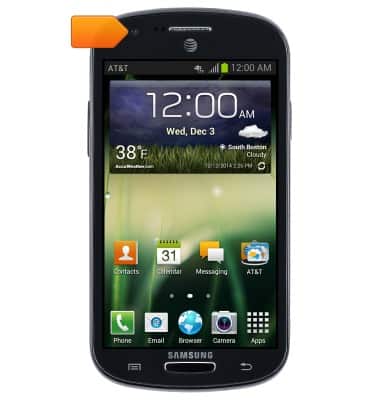

  9. The Front camera is located on the front of the device.
    device 2827/1462577.jpg

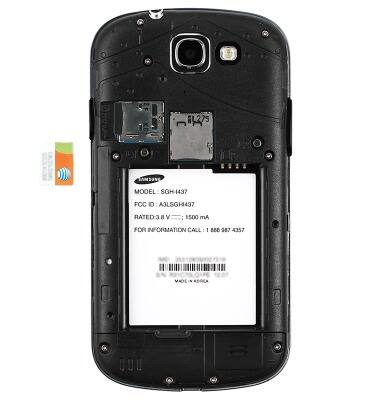

  10. The SIM card slot is located under the back cover of the device. The device uses a Micro-SIM card.
    device 2827/1462585.jpg

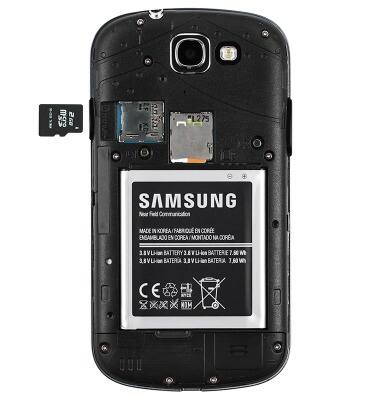

  11. The microSD card slot is located under the back cover of the device. A micro SD card of up to 64GB can be used.
    device 2827/1462588.jpg
