Device layout

Device layout

This tutorial shows the layout of your device.


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

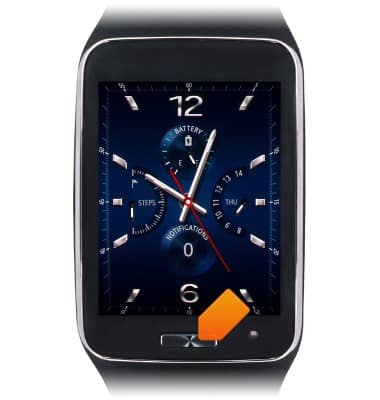

  1. The Home/Power key is used to return to the clock screen, and to power the device on and off. Quickly double-press the Home/Power key to access S Voice.
    device 2920/1500297.jpg

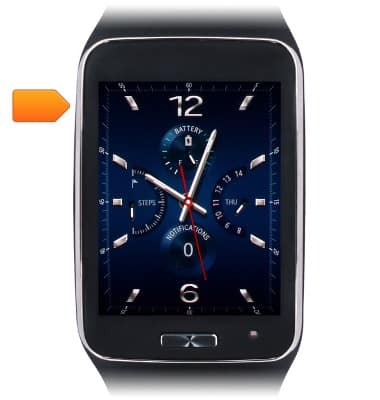

  2. The Speaker is located on the left side of the device.
    device 2920/1500298.jpg

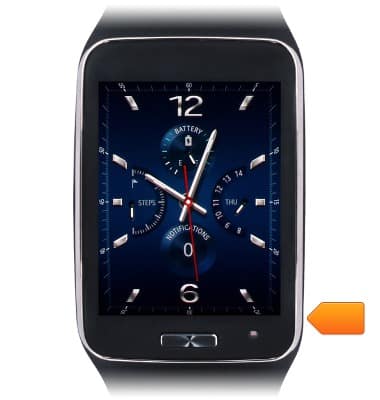

  3. The Microphone is located on the right side of the device.
    device 2920/1500299.jpg

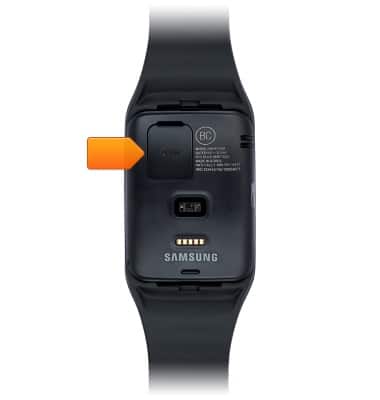

  4. The SIM card tray is located on the back of the device.
    device 2920/1500300.jpg

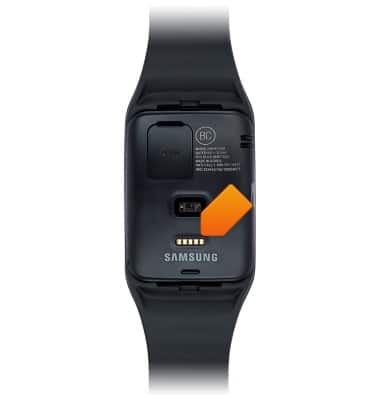

  5. The Charging terminal is used to charge the Gear S via the Charger Dock.
    device 2920/1500301.jpg

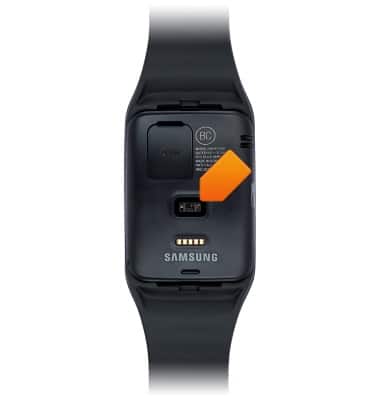

  6. The Heart Rate Sensor is used to measure your heart rate.
    device 2920/1500302.jpg
