Phone Assembly

Phone Assembly

Install and remove the SIM and battery.


INSTRUCTIONS & INFO
Prenote info
MicroSD/memory cards expand the storage capacity of device and are sold separately. This device can use a microSD card up to 512GB.

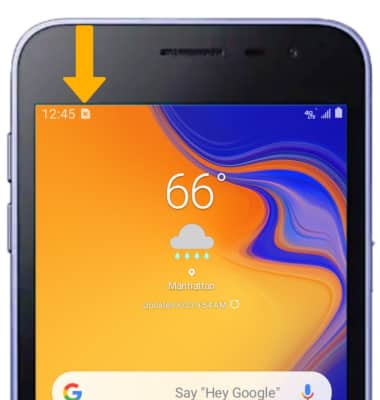

1. When the SIM card is missing, the Missing SIM icon will display in the Notification bar.

step 1

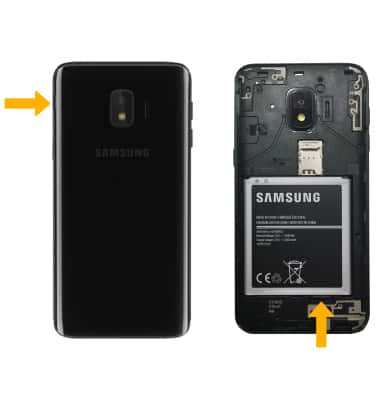

2. REMOVE BACK COVER & BATTERY: Remove the back cover of the device by pulling up from the notch on the upper left. Remove the battery by pulling up from the notch at the bottom.

step 2

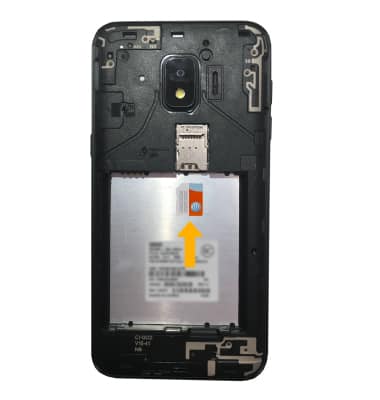

3. INSERT/REMOVE SIM CARD: Slide the SIM card into the SIM tray with the metal contacts facing down and the notched edge on the top left.

step 3

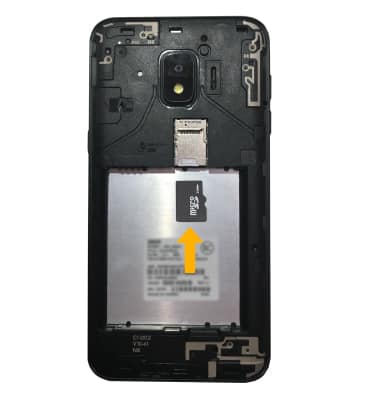

4. INSERT/REMOVE MEMORY CARD: Slide the microSD card into the microSD tray with the metal contacts facing down and the notched edge on the right.

Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, swipe down from the Notification bar then select the Settings icon > Device care > Storage > SD card > Menu icon > Storage settingsEject icon.

step 4

5. REPLACE BATTERY: Place the battery in the battery slot with the gold contacts on the battery lined up with the gold contacts on the phone.

step 5

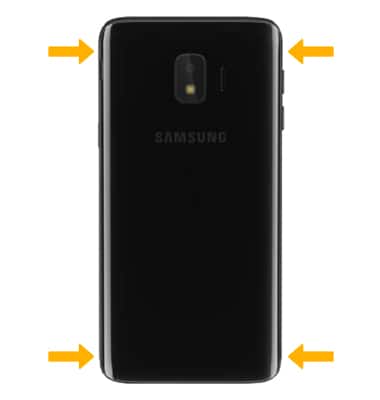

6. REPLACE BACK COVER: Place the cover on the back of the phone and gently press closed.

step 6
