Phone assembly

Phone assembly

How to install the battery, SIM, and memory card (for applicable devices).


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

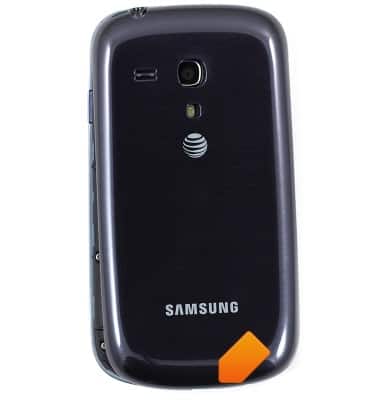

  1. Remove the Back panel of the device by placing a finger in the notch and gently pulling outward.
    device 2633/1265700.jpg

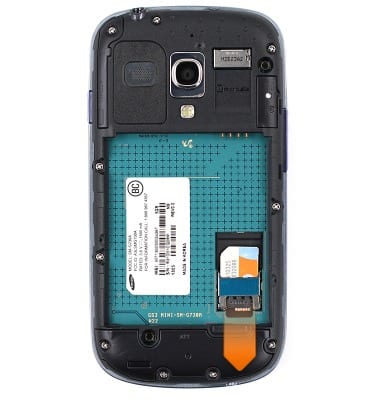

  2. Insert the microSIM card into the SIM card tray face up, with the missing corner of the card facing the top left of the device. Slide gently downward until the card is in place.
    device 2633/1265709.jpg

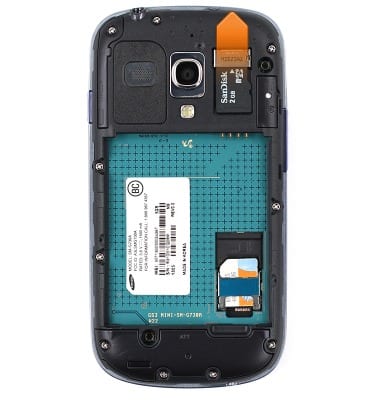

  3. Insert the SD card into the SD card tray face up, with the thickest edge of the card facing the bottom of the device. Slide gently upward until the card is in place.
    device 2633/1265712.jpg

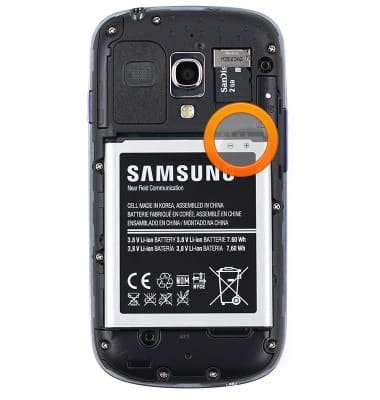

  4. Insert the Battery into the device, ensuring that the gold contacts on the battery line up with the contacts on the device.
    device 2633/1265714.jpg

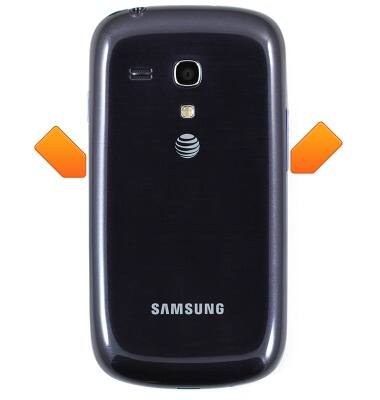

  5. Replace the Back panel by placing it over the device and pushing downward.
    device 2633/1265716.jpg

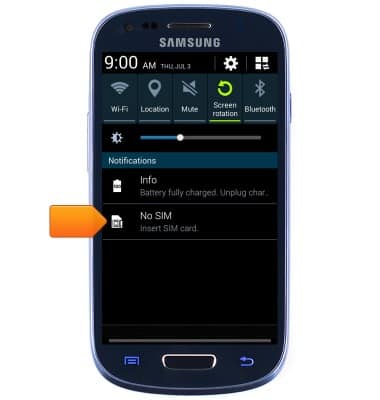

  6. If a SIM card is not installed in the device a Missing SIM icon will display in the Notifications menu.
    device 2633/1265687.jpg
