Hardware features and software navigation of your device.


INSTRUCTIONS & INFO
  1. Press the Sleep/Wake button to lock or unlock iPhone's screen, or press and hold to power iPhone on or off.
    device 5116/9006101_01.jpg

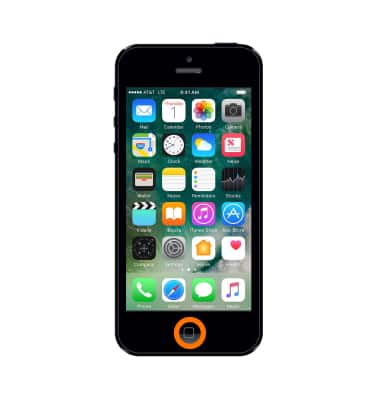

  2. Press the Home button to return to the home screen. Press the Home button twice to view currently running applications. Press and hold the Home button to open Siri or voice control.
    Note: The Touch ID fingerprint identity sensor is located on the Home button.
    device 5116/9006101_02.jpg
  3. Press the Volume buttons to adjust media or call volume.
    device 5116/9006101_03.jpg
  4. Flip the Ring/Silent switch to put iPhone in ring mode or silent mode.
    Note: In ring mode, iPhone plays all sounds. In silent mode, iPhone doesn’t ring or play alerts and other sound effects (but iPhone may still vibrate).
    device 5116/9006101_04.jpg

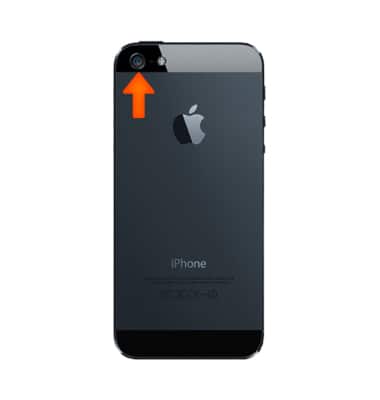

  5. The iSight camera is located on the back of the device.
    device 5116/9006101_05.jpg
  6. The True Tone Flash is located on the back of the device.
    device 5116/9006101_06.jpg

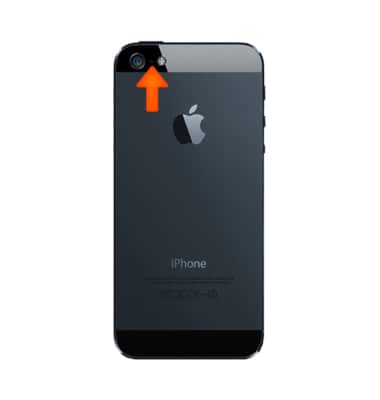

  7. The Rear microphone is located on the back of the device in between the iSight camera and the True Tone Flash.
    device 5116/9006101_07.jpg
  8. The FaceTime camera is located on the front of the device.
    device 5116/9006101_08.jpg

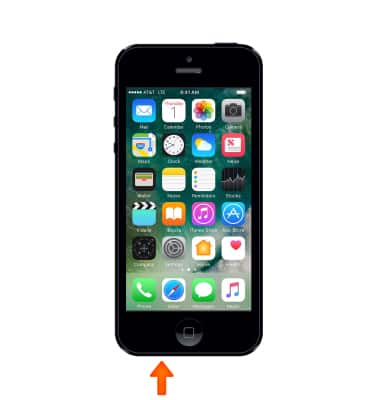

  9. The Receiver/front microphone is located on the bottom of the device.
    device 5116/9006101_09.jpg

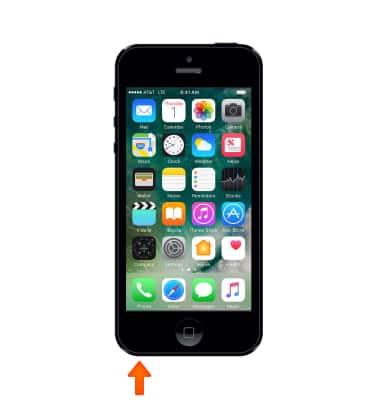

  10. The Headset jack is located on the bottom of the device.
    device 5116/9006101_10.jpg
  11. The SIM card tray is located on the right side of the device.
    Note: The device uses a Nano-SIM card.
    device 5116/9006101_11.jpg

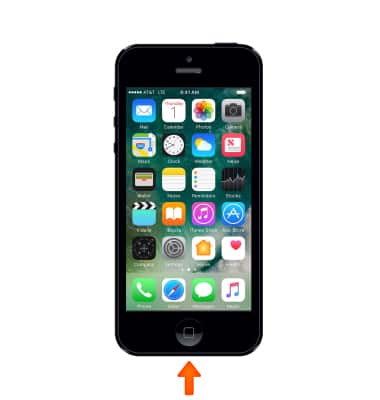

  12. The Lightning connector is located on the bottom of the device.
    device 5116/9006101_12.jpg

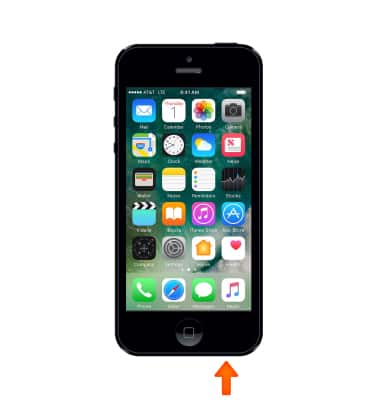

  13. The Speakers are located on the bottom of the device.
    device 5116/9006101_13.jpg
  14. The new Home app allows you to use your iOS device to connect the products you use in your home — so you can privately and securely control and monitor them, automate them, and make them work together.
    device 5116/9006101_14.jpg
