Device assembly

Install and remove the SIM and battery.

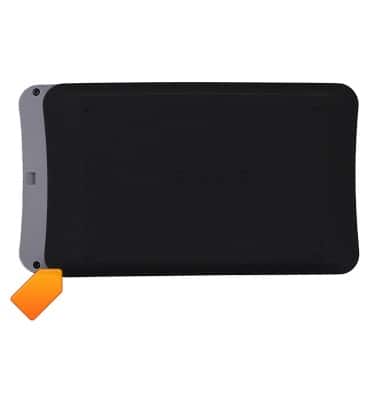

  1. Remove the Battery cover by pulling it away from the device.
    device 2846/1434331.jpg

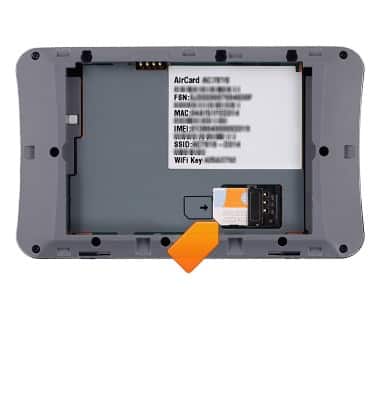

  2. To insert the SIM card, insert the Micro-SIM into the SIM port with the metal contacts and the beveled edge facing down.
    device 2846/1434332.jpg

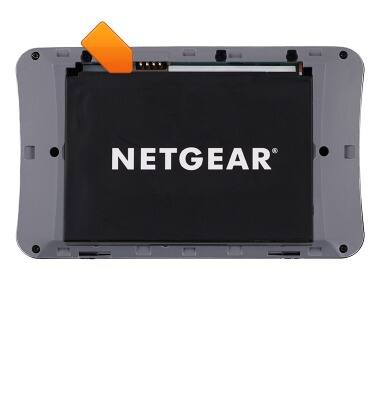

  3. To insert the battery, align the metal contacts, then place the Battery into the slot.
    device 2846/1434333.jpg
  4. Place the Battery cover back onto the device, then press firmly around the edges.
    device 2846/1434334.jpg

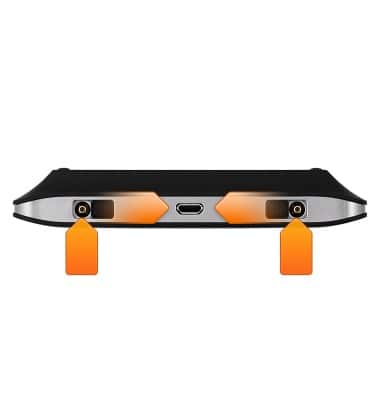

  5. To attach external antennae, slide the antenna port door open, then insert the antennae into the port.
    device 2846/1434336.jpg
  6. If a SIM is not in the device, the Missing SIM icon will be displayed in the Notification bar and an alert will be displayed on the screen.
    device 2846/1434345.jpg
