Device layout

Provides an overview of the device layout.

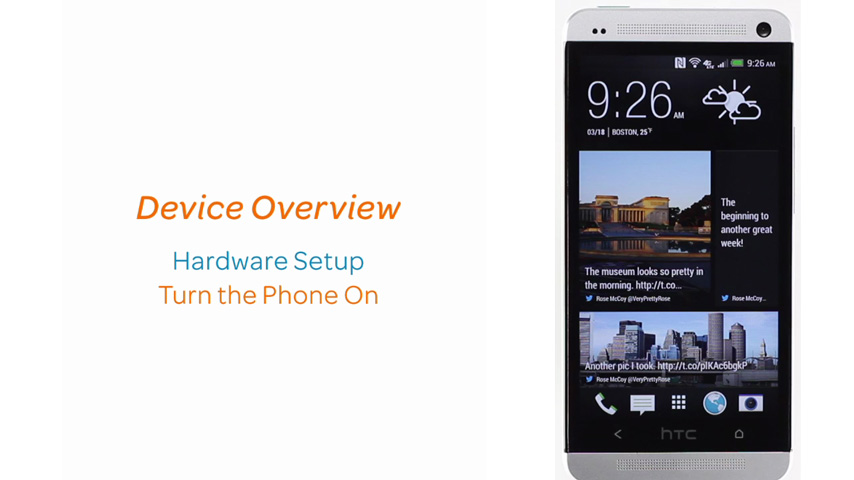

Video

WATCH AND LEARN


INSTRUCTIONS & INFO
  1. Press the Volume keys to adjust the media volume or call volume.
    device 2984/1544076.jpg
  2. Press the Power/lock key to turn the device on or off, or to put the display to sleep.
    device 2984/1544077.jpg
  3. The SIM card slot is located on the left side of the device. The device uses a Micro-SIM card.
    device 2984/1544078.jpg
  4. Press the Back key to return to the previous screen.
    device 2984/1544079.jpg
  5. Press the Home key to return to the home screen.
    device 2984/1544080.jpg
  6. The USB/Charging port is located on the bottom of the device.
    device 2984/1544081.jpg
  7. The Headphone jack is located on the bottom of the device.
    device 2984/1544082.jpg
  8. The Rear camera is located on the back of the device.
    device 2984/1544083.jpg
  9. The Front camera is located on the front of the device.
    device 2984/1544084.jpg
