Device layout

Device layout

Provides an overview of the device layout.


INSTRUCTIONS & INFO

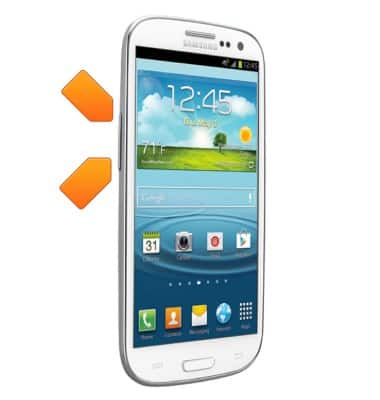

  1. Press the Volume keys to adjust media or call volume.
    device 3214/1680328.jpg

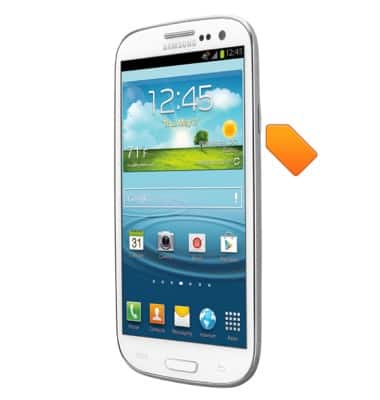

  2. Press the Power/Lock key to turn the device on or off, or put the display to sleep.
    device 3214/1680329.jpg

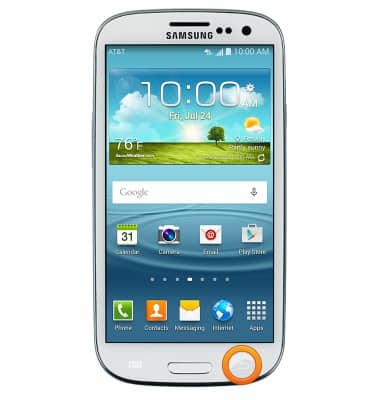

  3. Press the Back key to return to the previous screen.
    device 3214/1680330.jpg

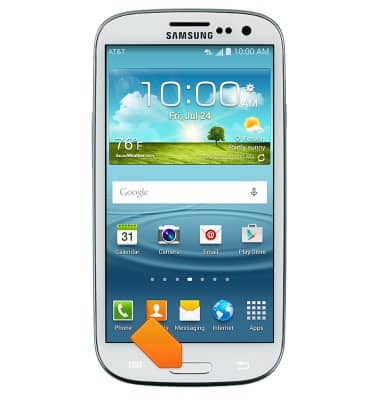

  4. Press the Home key to return to the home screen.
    device 3214/1680331.jpg

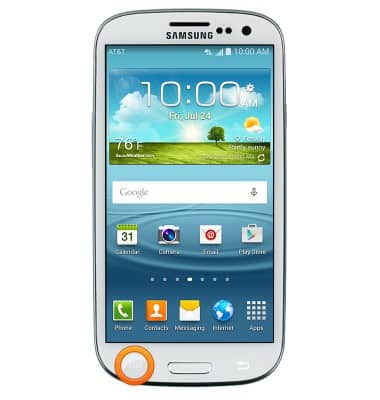

  5. Press the Recent Apps key to view a list of recently opened apps.
    device 3214/1680332.jpg

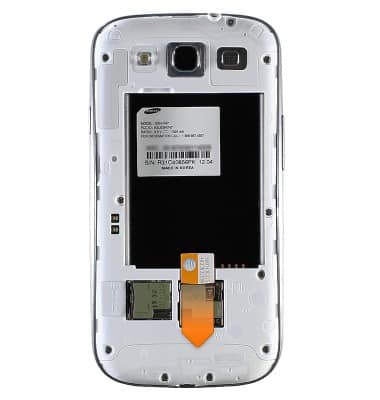

  6. The SIM card slot is located in the back of the device, under the back cover. The device uses a Micro-SIM card.
    device 3214/1680334.jpg

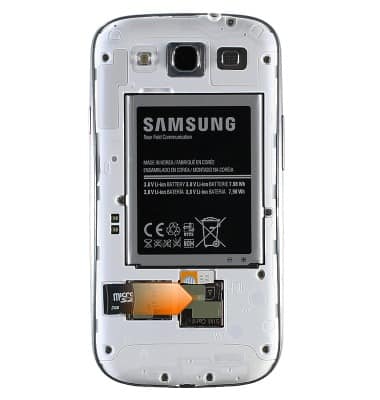

  7. The Memory card slot is located in the device interior, on top of the SIM card slot. The device accepts microSD cards up to 64GB.
    Note: microSD card sold separately.
    device 3214/1680335.jpg

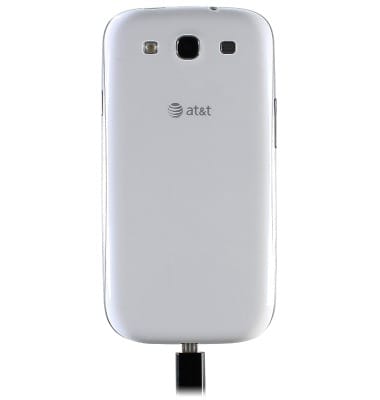

  8. The USB/Charging port is located on the bottom of the device.
    device 3214/1680336.jpg

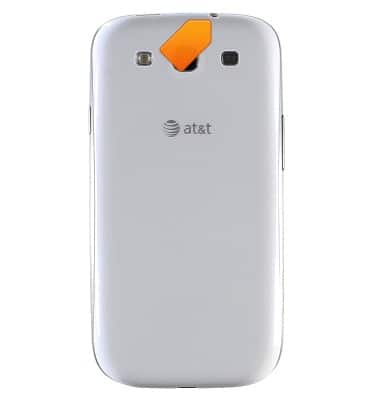

  9. The Headphone jack is located at the top of the device.
    device 3214/1680337.jpg

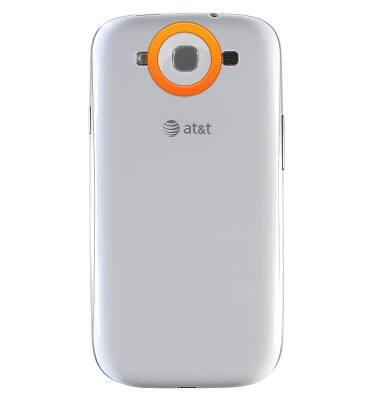

  10. The Rear camera is located on the back of the device.
    device 3214/1680338.jpg

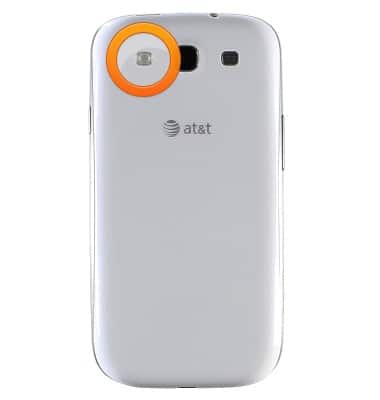

  11. The Camera Flash is located on the back of the device.
    device 3214/1680339.jpg
  12. The Speaker is located on the back of the device.
    device 3214/1680342.jpg

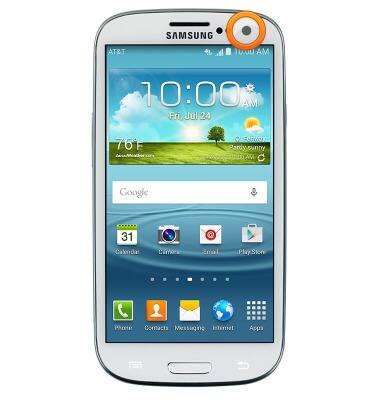

  13. The Front camera is located on the front of the device.
    device 3214/1680340.jpg
