Device layout

Device layout

Provides an overview of the device layout.


INSTRUCTIONS & INFO

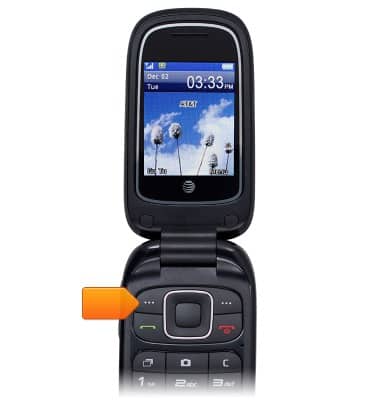

  1. To access My menu or make an on-screen selection, press the Left Soft Key.
    device 3220/1687812.jpg

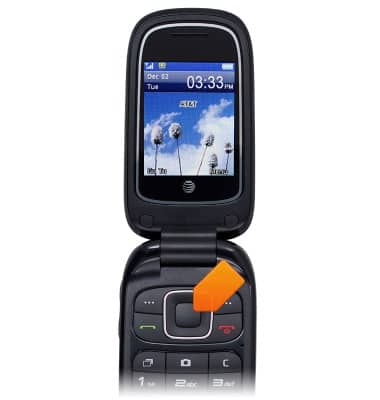

  2. To access the web from the home screen, press the Center Nav key. To select an on-screen option, press the Center Nav key.
    device 3220/1687813.jpg
  3. To access the Menu from the home screen, press the Right Soft key. To select an on-screen option, press the Right Soft Key.
    device 3220/1687814.jpg

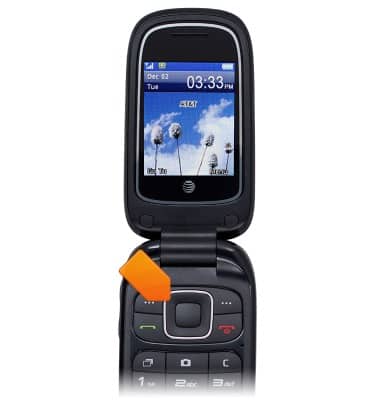

  4. To scroll to the desired selection, press the appropriate Nav key.
    device 3220/1687815.jpg

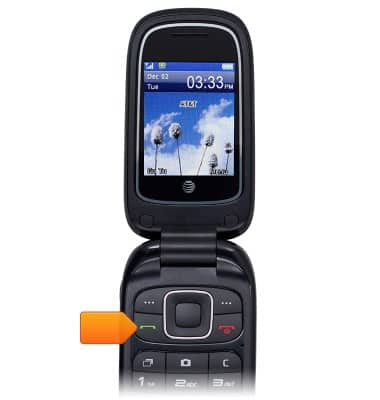

  5. To access contacts, press the Call key. To call the last number dialed, press and hold the Call key.
    device 3220/1687816.jpg

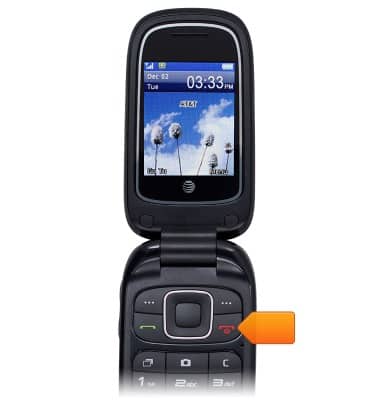

  6. To End a call, press the End Call key. To turn the device off or on, press and hold the End Call key. Also, press this key to return to the home screen.
    device 3220/1687817.jpg

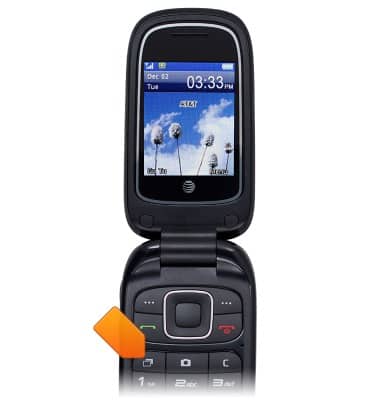

  7. To view recently used apps, press the Recent Apps key.
    device 3220/1687818.jpg

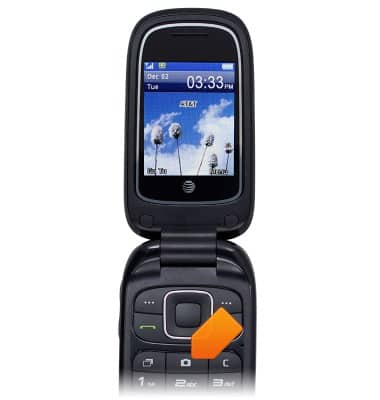

  8. To access the Camera, press the Camera key.
    device 3220/1687819.jpg

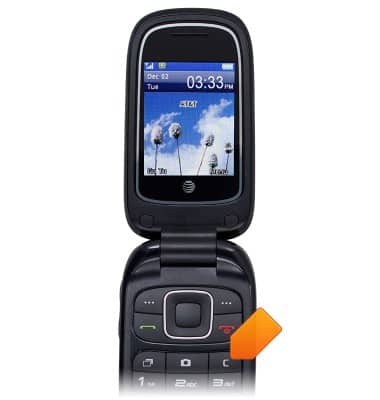

  9. To clear or go back, press the Clear key.
    device 3220/1687820.jpg
  10. Press the desired number keys to dial a number.
    device 3220/1687821.jpg

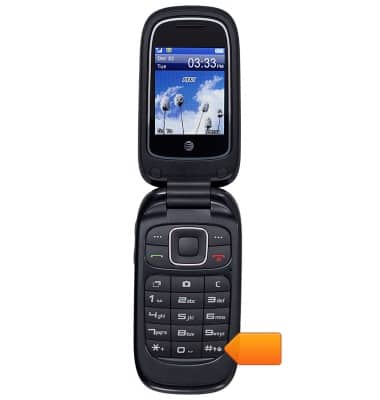

  11. Press and hold the # key to turn vibrate on or off.
    device 3220/1687822.jpg

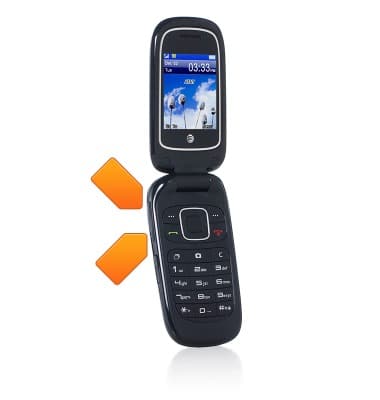

  12. To adjust the volume, press the Volume keys.
    device 3220/1687823.jpg

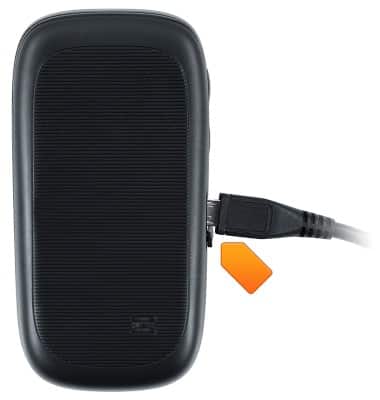

  13. To charge or connect to a computer, insert a microUSB into the microUSB port.
    device 3220/1687824.jpg
  14. To access the battery, SIM card slot, and microSD card slot, remove the Battery Cover.
    device 3220/1687825.jpg

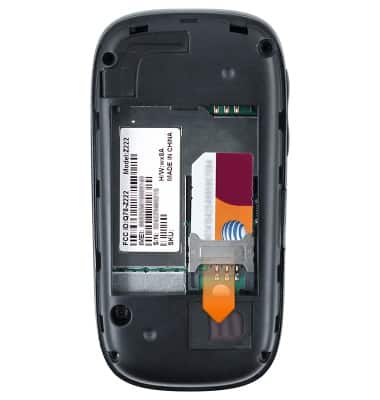

  15. The SIM card slot is located in the back of the device, under the battery. The device uses a standard SIM card.
    device 3220/1688978.jpg

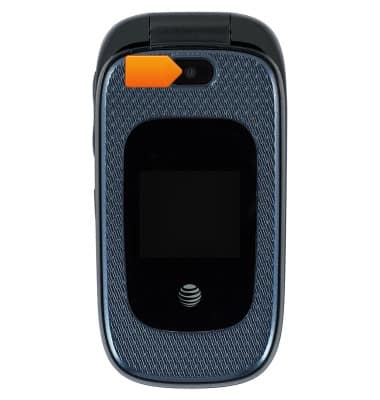

  16. The Camera lens is located on the front of the device.
    device 3220/1687826.jpg
  17. The Front LCD screen will display notifications, battery power, and the time and date.
    device 3220/1687827.jpg
