Phone Assembly

Install and remove the SIM and battery.

INSTRUCTIONS & INFO

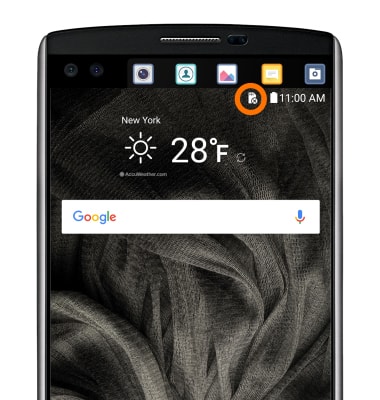

  1. When the SIM card is missing, the Missing SIM icon will display in the Notification bar.
    device 5069/9006419_01.jpg
  2. To access the Nano-SIM card and microSD card slots, remove the back cover by pressing a fingernail in the notch on the bottom center of the device.
    device 5069/9006419_02.jpg

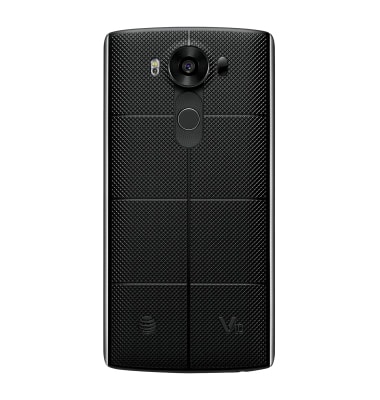

  3. To remove the back cover, hold the phone firmly in one hand. With your other hand, lift off the back cover with your thumbnail.
    device 5069/9006419_03.jpg

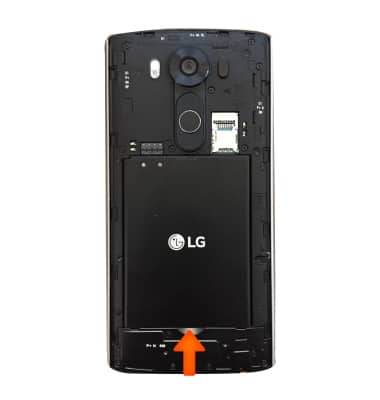

  4. Remove the battery.
    device 5069/9006419_04.jpg

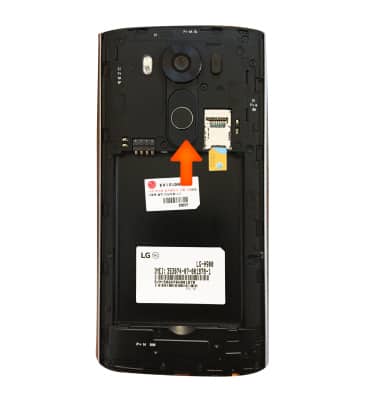

  5. To insert the SIM, insert the Nano-SIM card with the metal contacts facing down into the SIM slot. To remove, simply slide it down.
    device 5069/9006419_05.jpg
  6. To insert a microSD card, insert the microSD card with the metal contacts facing down into the microSD card slot. To remove, simply slide it down.
    Note: A microSD memory card (Sold separately) expands storage capacity of the device. A microSD card up to 2TB can be used. To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, tap Settings > General > Storage > Unmount SD Card.
    device 5069/9006419_06.jpg
