Device Assembly

Device Assembly

Install and remove the SIM and battery.


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

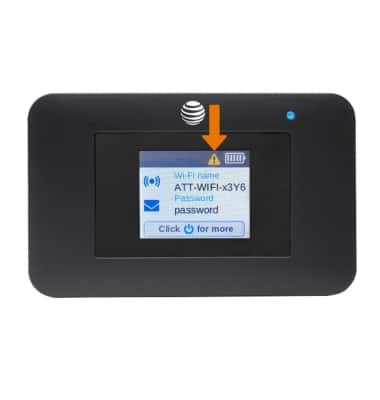

  1. If a SIM is not in the device, the SIM Not Installed alert will be displayed on the screen.
    device 5236/9006280_01.jpg

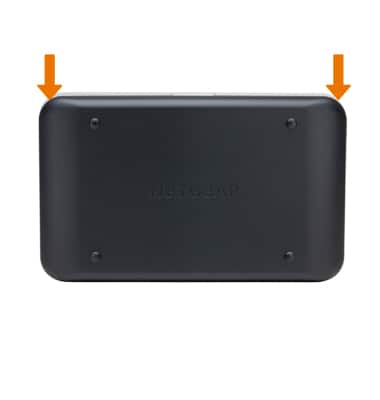

  2. With the device face down, use the two notches to gently lift the backplate off.
    device 5236/9006280_02.jpg

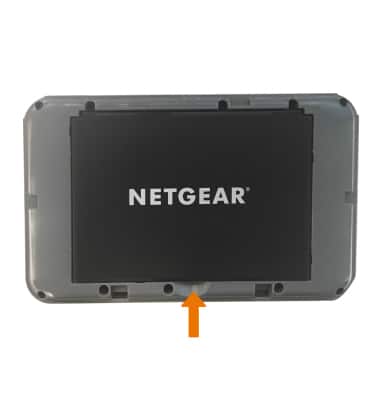

  3. Remove the battery by using the notch at the bottom to gently pull the battery out.
    device 5236/9006280_03.jpg

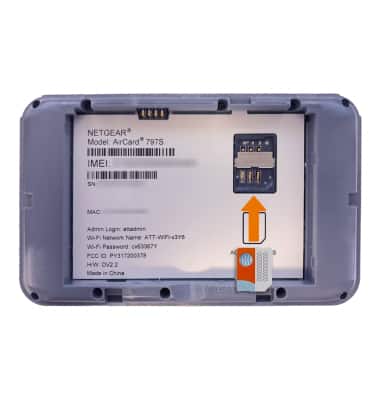

  4. Insert the microSIM into the SIM port with the metal contacts facing down and the notched edge to the bottom right.
    device 5236/9006280_04.jpg

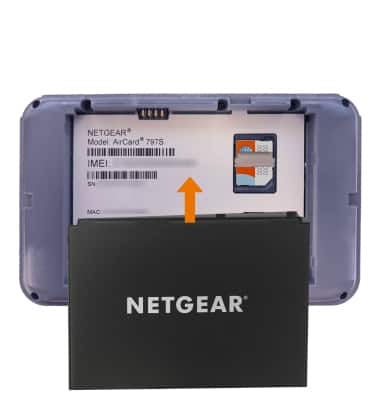

  5. Place the battery in the battery slot with the gold contacts on the battery lined up with the gold contacts on the device.
    device 5236/9006280_05.jpg

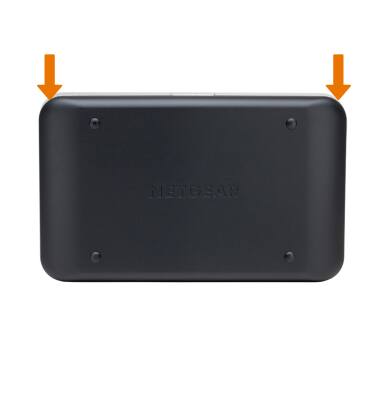

  6. Place the cover on the back of the device and gently push down until the backplate clicks.
    device 5236/9006280_06.jpg
