Familiarize yourself with hardware features and software navigation of your device.


In this tutorial, you will learn how to:

• Unlock and turn device on or off
• Return to home screen
• Adjust volume or silence device
• Locate cameras
• Locate microphone and speakers
• Locate the SIM card tray
• Locate the charging connector port



Unlock and turn device on or off

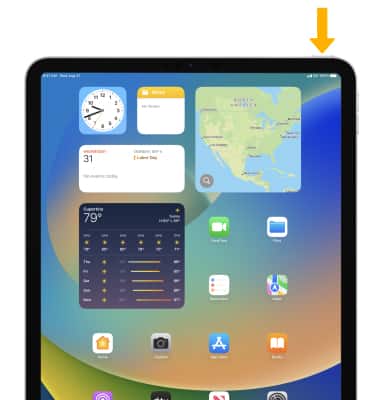

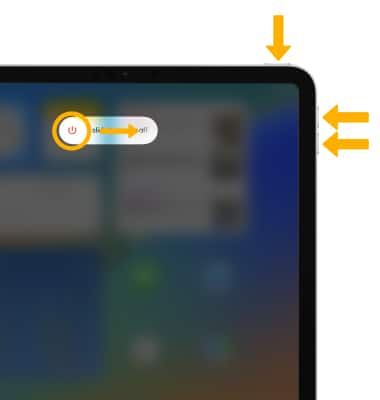

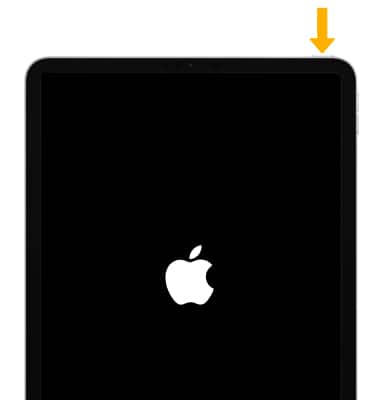

Press the Sleep/Wake button to lock or unlock iPad's screen, or press and hold to power iPad on or off.

Image 1




Return to home screen

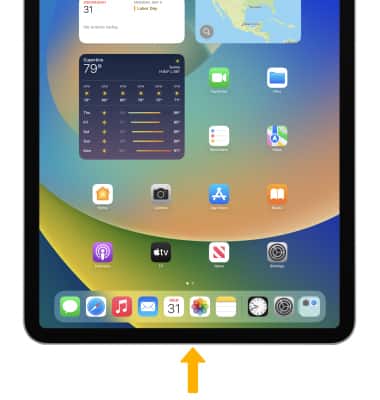

Swipe up from the bottom of the screen to return to the home screen.


Image 2




Adjust volume or silence device

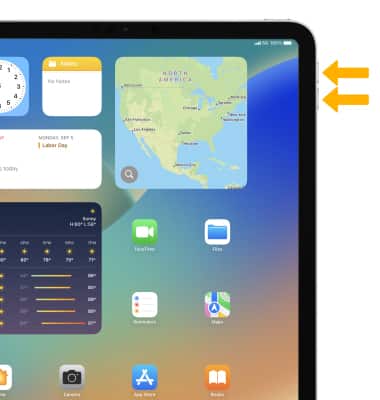

Press the Volume buttons on the right side of the device to adjust media or call volume.

Image 3




Locate cameras

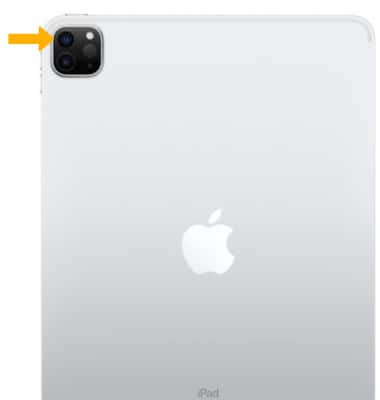

The iSight camera is located on the back of the device.

Image 4

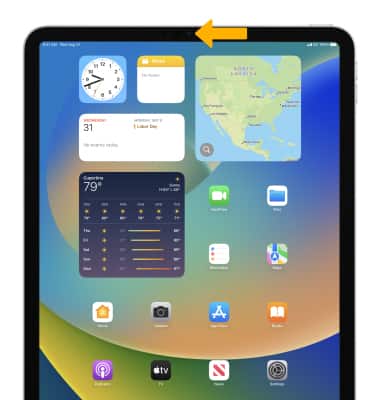

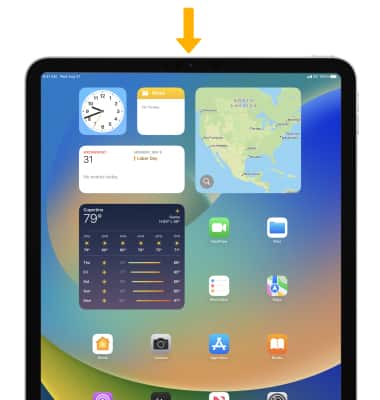

The FaceTime camera is located on the front of the device.

Image 5




Locate microphone and speakers

The Rear microphone is located on the back of the device.

Image 6

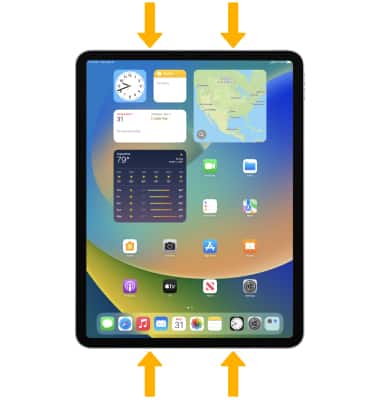

The speakers are located on the top and bottom of the device.

Image 7




Locate the SIM card tray

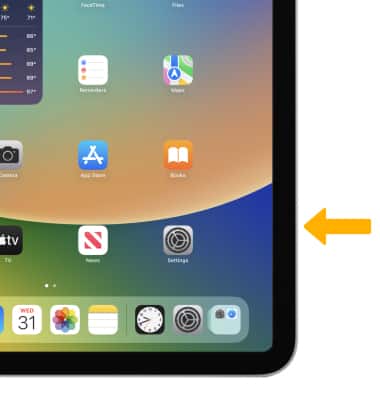

The SIM card tray is located on the bottom right side of the device.

Note: The device uses a Nano-SIM card.

Image 8




Locate the connector port

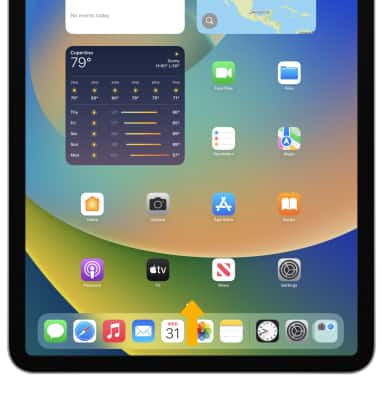

The USB-C connector is located on the bottom of the device.

Note: Apple iPad Pro 11-inch (2021) and Apple iPad Pro 12.9-inch (2021) include the Thunderbolt USB4 port. It is the fastest, most versatile port ever on iPad. It works with existing USB‑C connectors and opens up an extensive ecosystem of high‑performance accessories for iPad Pro — like fast external storage, displays, and docks. Transfer huge assets with up to 40 Gbps bandwidth for wired connections. Visit Apple for more information.

Image 9
