Device layout

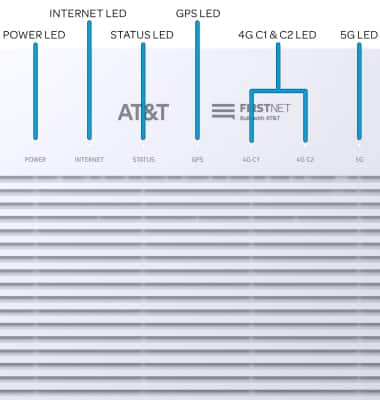

The device has 7 LED indicators located on the front of the device.

Image 1

• POWER LED: Indicates device power status.
• INTERNET LED: Indicates successfull internet connection.
• STATUS LED: Indicates successful connection established with mobile operator network.
• GPS LED: Indicates device is ready to provide GPS service.
• 4G C1 & C2 LEDs: Indicates device is ready to provide LTE service.
• 5G LED: Indicates device is ready to provide 5G service.





Port and button layout

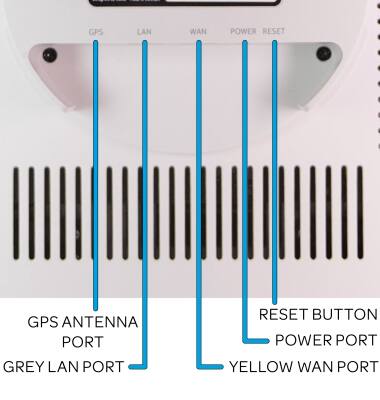

The device has 4 ports and 1 button located on the back of the device .

Image 2

• POWER PORT: Plug in the AC adaptor.
• YELLOW WAN PORT: Connect the device to an internet router.
• GREY LAN PORT: Connect to other devices, like a PC, if needed.
• RESET BUTTON: Reboot or factory reset the device.
Note: For more information, see the Reset device tutorial.
• GPS ANTENNA PORT: Install the GPS Antenna.




Install the GPS antenna

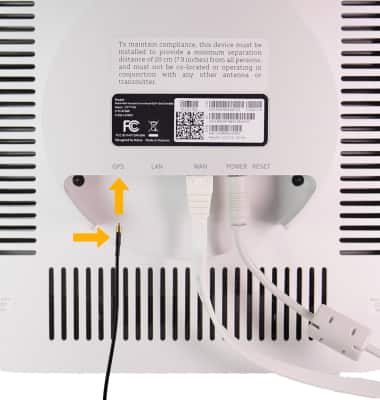

To install the GPS antenna, insert the gold-side of the GPS cable into the GPS port until it clicks into place.

Image 3
