Phone assembly

Phone assembly

Install and remove the SIM and battery.


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

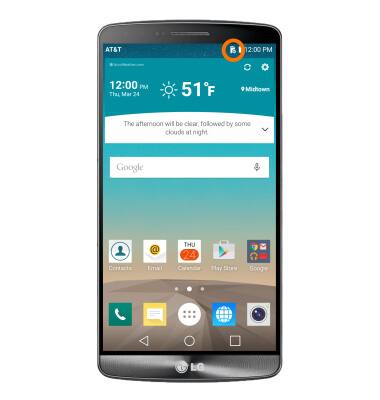

  1. When the SIM card is missing, the Missing SIM icon will display in the Notification bar.
    device 5077/9006107_01.jpg

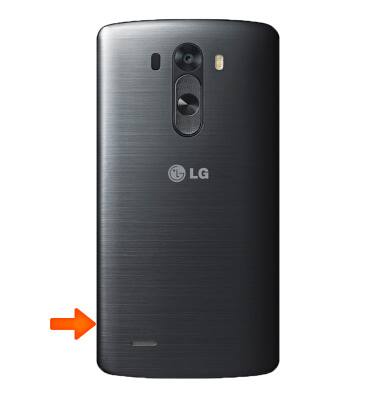

  2. To access the Micro-SIM card and microSD card slots, remove the back cover by pressing a fingernail in the notch on the bottom center of the device.
    device 5077/9006107_02.jpg

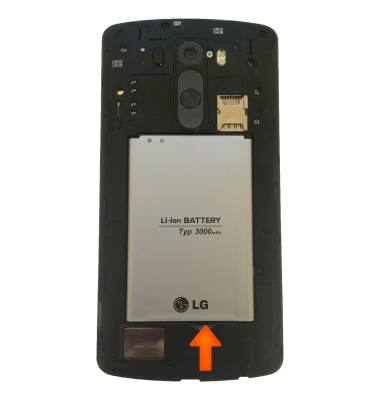

  3. Remove the battery.
    device 5077/9006107_03.jpg

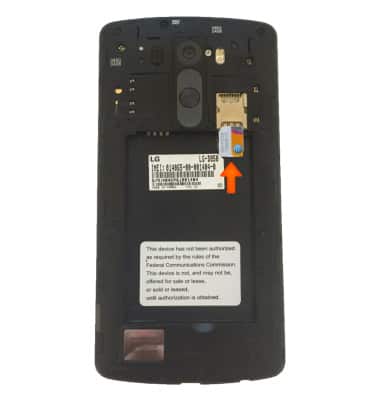

  4. To insert the SIM, insert the Micro-SIM card with the metal contacts facing down into the SIM slot. To remove, simply slide it down.
    device 5077/9006107_04.jpg
  5. To insert a microSD card, insert the microSD card with the metal contacts facing down into the microSD card slot. To remove, simply slide it down.
    Note: A microSD memory card (Sold separately) expands storage capacity of the device. A microSD card up to 2TB can be used. To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, tap Settings > General > Storage > Unmount SD Card.
    device 5077/9006107_05.jpg
