Connect WPS Devices

Learn how to connect WPS devices.

1. Ensure that Wireless is enabled on your connected device.

Note: For this demonstration, a printer has been chosen to show the WPS connection process.

Image 1

2. On your printer, select the Wireless icon, or Wireless button if available.

Image 2

3. Select the files Settings icon. Navigate to and select Wi-Fi Protected Setup.

Image 3

4. Select the desired Wi-Fi Protected Setup option.

Note: For this demonstration, Push Button was selected.

Image 4

5. Select Start.

Image 5

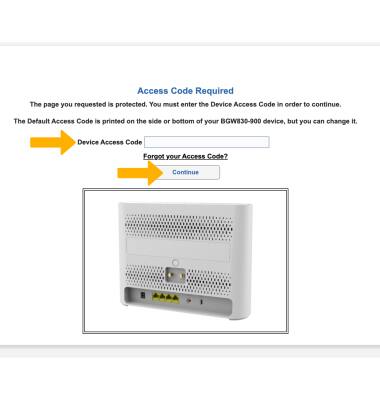

6. To start a WPS connection, you must be logged into the web UI. From your device’s web browser, go to https://192.168.1.254. Enter your Device Access Code, then click Continue.

Note: Ensure that your device is connected to your AT&T BGW830's Wi-Fi network. For more information, please see the Connect Devices to Wi-Fi or Connect PC or Mac to Wi-Fi tutorials. Enter the access code printed on the label on the back of the device.

Image 6

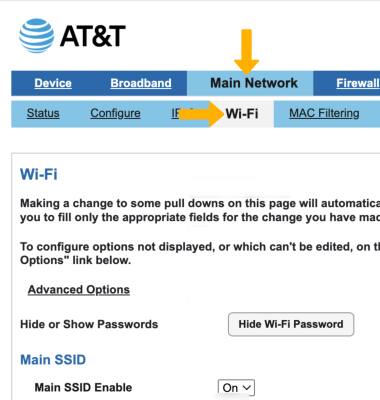

7. Click the Main Network tab, then click Wi-Fi.

Image 7

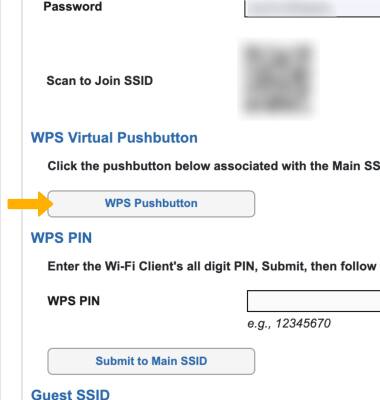

8. Scroll down and click WPS Pushbutton. The devices will take a moment to establish a connection.

Image 8
