- Getting to know your equipment

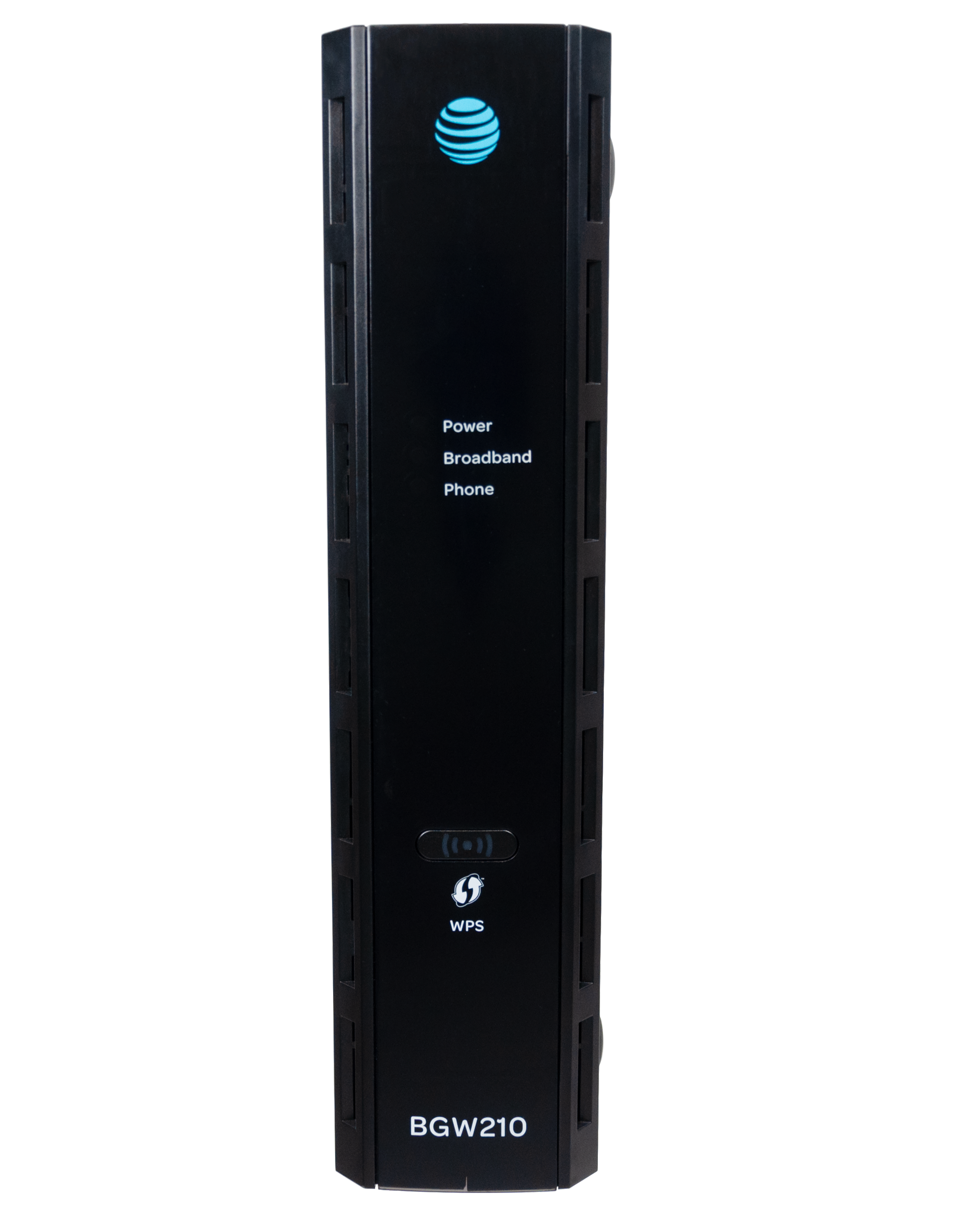

Power LED
Broadband LED
Phone LED
WPS Button and LED
Indicates the power status of your equipment.
- Solid Green: The gateway is on and operating as normal.
- Flashing Green: The equipment is starting up or undergoing a power-on self-test (POST).
- Flashing Red: A POST failure or equipment malfunction has occurred.
Shows the status of your broadband connection.
- Solid Green: Strong broadband signal
- Flashing Green: The equipment is starting up or trying to establish a broadband connection.
- Flashing Yellow: The LTE equipment is installed but not functioning correctly while the primary connection is active.
- Flashing Red: A broadband signal is detected, but the connection couldn’t be established.
- Solid Red: No signal on a line.
Shows the status of your phone and VoIP services.
- Solid Green: A VoIP line has been configured and registered.
- Flashing Green: Indicates ringing for an incoming call and when the telephone is off-hook.
- Solid Red: One or more lines are unregistered.
- Off: VoIP is not in use, or the gateway is powered off.
Connects a device using the Wi-Fi Protected Setup method.
- Solid Green: WPS setup is complete. The LED will remain lit for 5 minutes or until the button is pressed again.
- Flashing Green: WPS is active and broadcasting for 2 minutes.
- Flashing Red: WPS is broadcasting for 2 minutes, indicating a session overlap, which may pose a security risk.
- Solid Red: A non-security-related error occurred, such as a failure to find a partner or WPS being disabled. The light will stay red for 5 minutes or until the button is pressed again.
- Off: The gateway is ready for WPS authentication.
