Phone Assembly

Install the SIM and MircoSD card.

INSTRUCTIONS & INFO

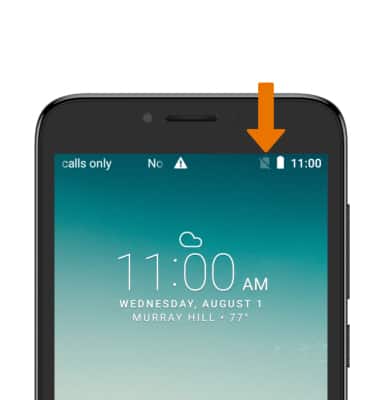

  1. The Missing SIM icon will be displayed in the Notification bar when there is no SIM card in the device.
    device 5225/9006107_01.jpg

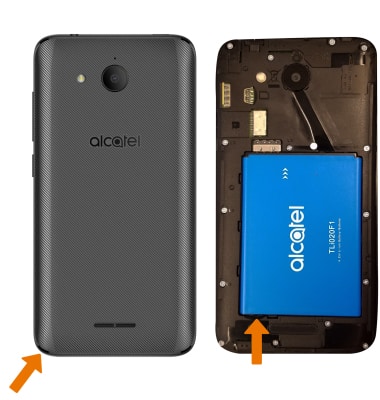

  2. REMOVE BACK COVER & BATTERY: Remove the back cover by inserting your thumbnail into the notch at the bottom left of the back of the device and lifting up. Remove the battery by gently pulling up from the notch on the bottom.
    device 5225/9006107_02.jpg

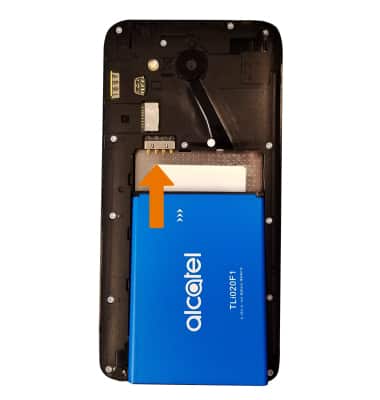

  3. REPLACE BATTERY: Place the battery in the battery slot with the gold contacts on the battery lined up with the gold contacts on the phone.
    device 5225/9006107_03.jpg
  4. INSERT/REMOVE SIM CARD: The SIM slot is above the battery compartment. Insert the nano-SIM card into the SIM slot with the metal contacts facing down and the notched edge going in first. Push until it is all the way in. To remove, simply slide it down.
    device 5225/9006107_04.jpg

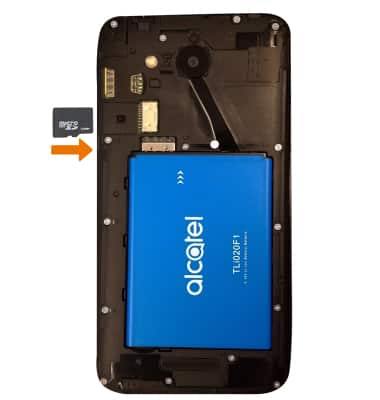

  5. INSERT/REMOVE MEMORY CARD: Insert an optional microSD card up to 128GB into the microSD card slot, with the metal contacts facing down and the notched edge going in first. Push until it is all the way in. To remove, simply slide it down.
    Note: MicroSD cards are sold separately.  To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, swipe down from the Notification bar > select the Settings icon > Storage > Eject icon beside SD card.
    device 5225/9006107_05.jpg

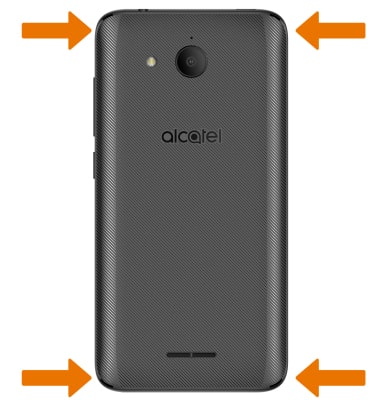

  6. REPLACE BACK COVER: Place the cover on the back of the phone, then gently push in until the cover clicks. The cover should be flush with the rest of the device.
    device 5225/9006107_06.jpg
