Phone assembly

How to install the battery, SIM, and memory card (for applicable devices).

INSTRUCTIONS & INFO
  1. Remove the back cover using the ridge on the side of the device.
    device 2686/1310818.jpg
  2. To install a SIM card, insert the Micro-SIM card into the SIM slot, making sure the gold contacts are facing up and the notched edge is facing the slot.
    device 2686/1310819.jpg
  3. If a Micro-SIM card is not in the device, the Missing SIM icon will display in the Notifications bar.
    device 2686/1310820.jpg
  4. To install an SD card, insert the microSD card into the microSD card slot, making sure the gold contacts are facing up.
    device 2686/1310821.jpg

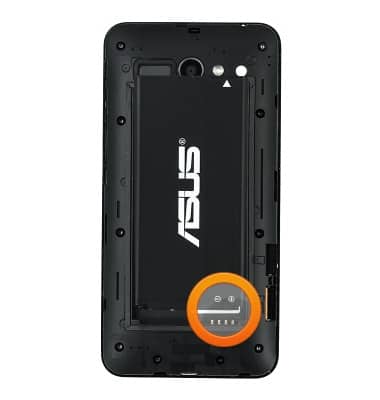

  5. To install the battery, place the Battery into the Battery compartment, making sure to align the gold contacts on the battery with the contacts on the device.
    device 2686/1310822.jpg

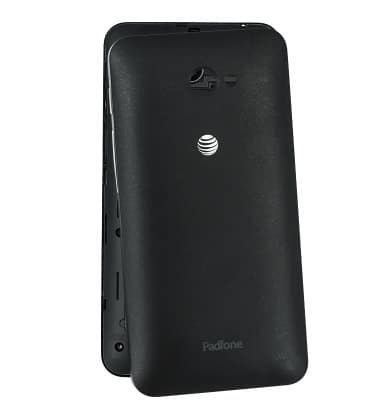

  6. Align the Back cover with the back of the device.
    device 2686/1310823.jpg

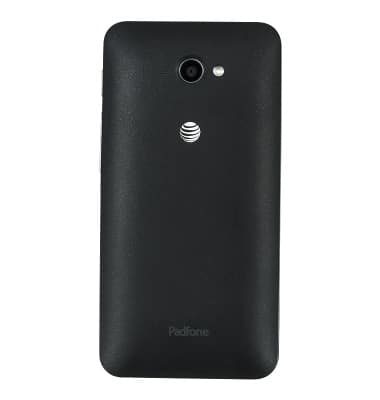

  7. Press firmly along the edges of the cover until it snaps fully into place.
    device 2686/1312195.jpg

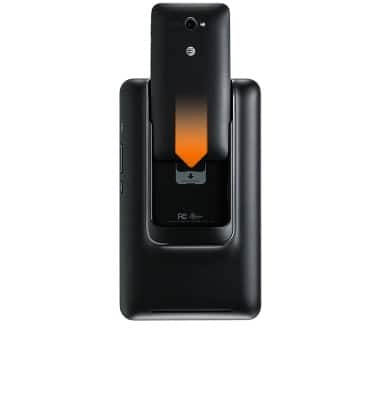

  8. To dock the PadFone into the PadFone Station, slide the device into the dock on the back of the Station. When the device is properly docked, the screen of the Station will turn on.
    device 2686/1312196.jpg
