Phone assembly

How to install the battery, SIM, and memory card (for applicable devices).


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

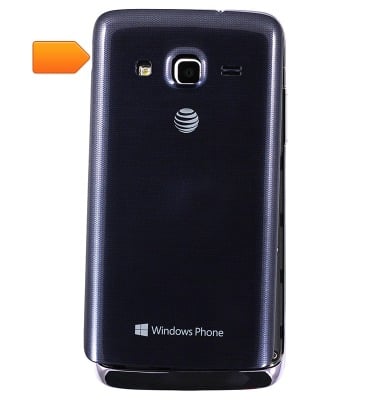

  1. Remove the Battery cover by using the notch on the side of the device.
    device 2641/1279472.jpg

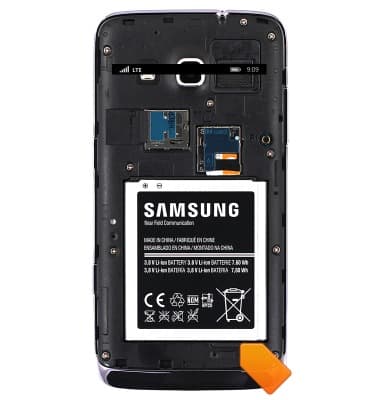

  2. Remove the Battery by using the notch on the device at the end of the battery.
    device 2641/1279497.jpg

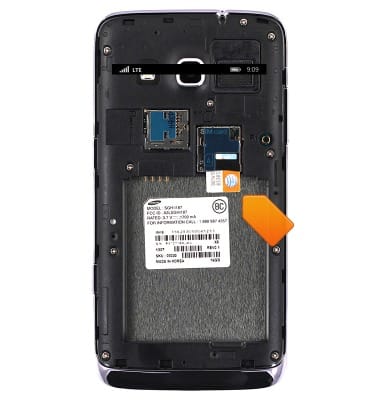

  3. Insert the Micro-SIM card into the SIM card port with the metal contacts facing down and the beveled edge facing left. To remove, push to unlock the SIM card, then remove.
    device 2641/1279499.jpg

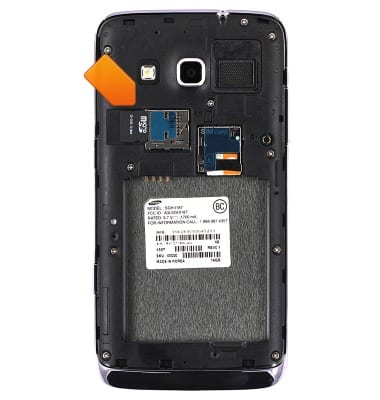

  4. Insert the SD card into the SD card port with the metal contacts facing down and the beveled edge facing down, then push until locks it in. To remove, push to unlock the SD card, then remove.
    device 2641/1279503.jpg

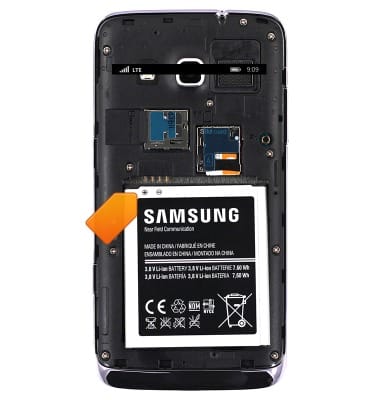

  5. Aligning the metal contacts, insert the Battery into the Battery port.
    device 2641/1279511.jpg

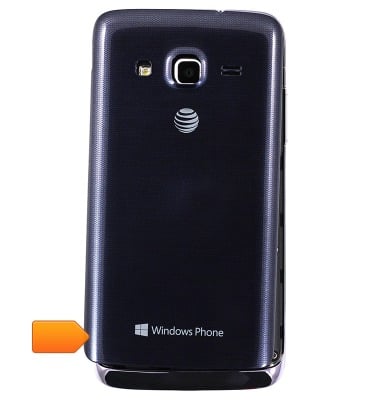

  6. Place the Battery cover onto the device, then push around the sides to secure.
    device 2641/1279512.jpg

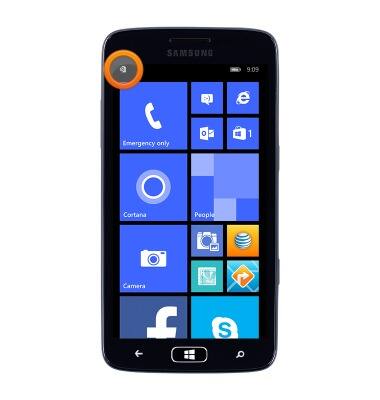

  7. If a SIM is not in the device the Missing SIM icon will display
    device 2641/1279529.jpg
