Device layout

Provides an overview of the device layout.

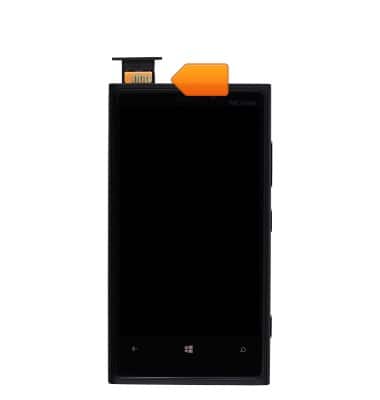

  1. The SIM Card slot is located at the top of the device.
    device 2802/1358341.jpg

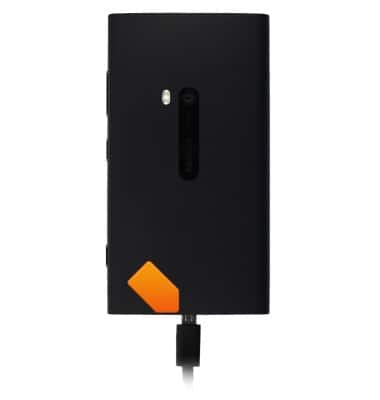

  2. The microUSB/Charger port is located on the bottom of the device.
    device 2802/1358345.jpg

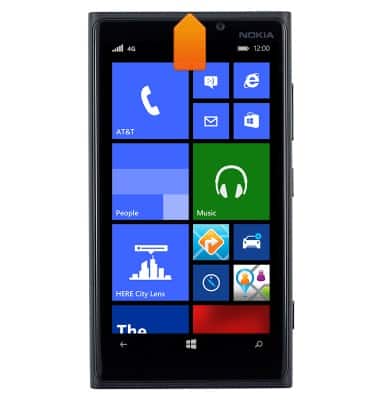

  3. The Headphone jack is located on the top of the device.
    device 2802/1358342.jpg

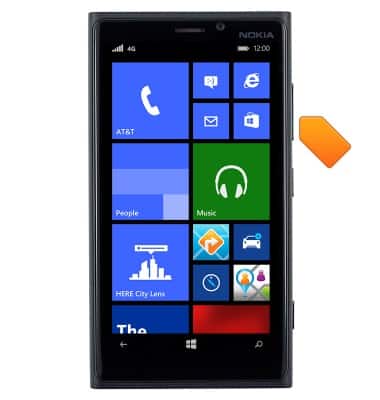

  4. The Volume keys are located on the side of the device.
    device 2802/1358344.jpg

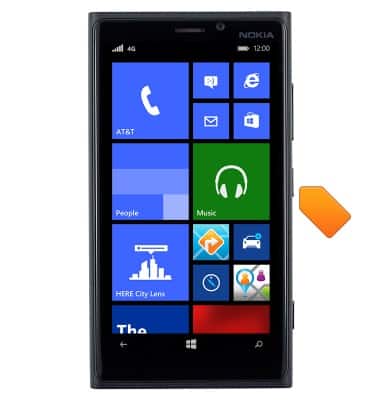

  5. The Power/Lock key is located on the side of the device below the Volume keys.
    device 2802/1358343.jpg

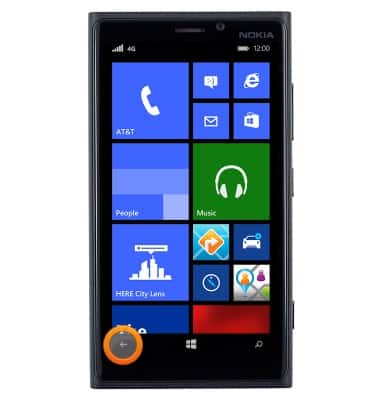

  6. Press the Back key to return to the previous menu or screen. Press and hold the Back key to view the currently running apps.
    device 2802/1358346.jpg

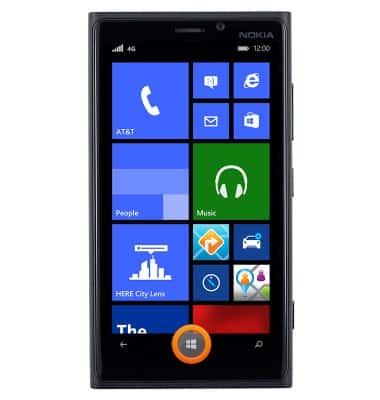

  7. Press the Windows key to return to the home screen.
    device 2802/1358347.jpg

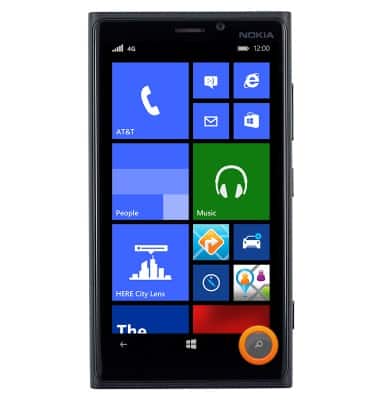

  8. Press the Search key to access Cortana. Press and hold the Search key to initiate a voice search or command.
    device 2802/1358348.jpg
