Phone assembly
Which device do you want help with?

Phone assembly

How to install the battery, SIM, and memory card (for applicable devices).


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

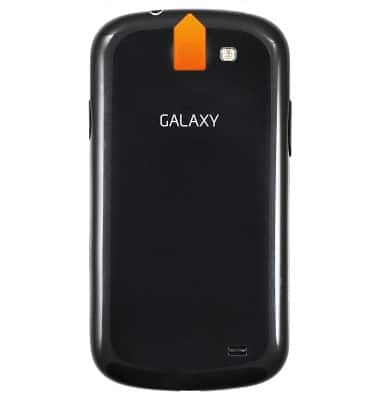

  1. Use the notch to lift up the battery cover.
    device 2827/1429973.jpg

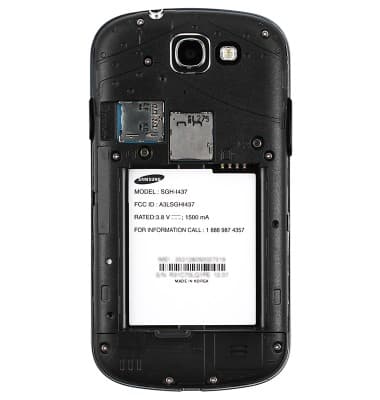

  2. Remove the battery cover.
    device 2827/1429974.jpg

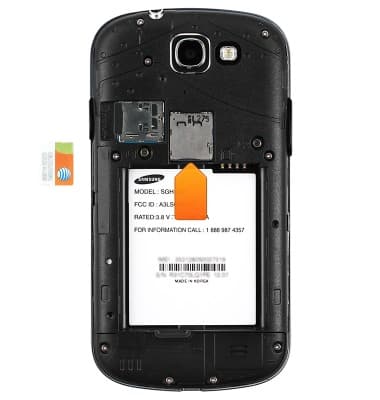

  3. Place the microSIM Card into the SIM Card Tray.
    device 2827/1429976.jpg

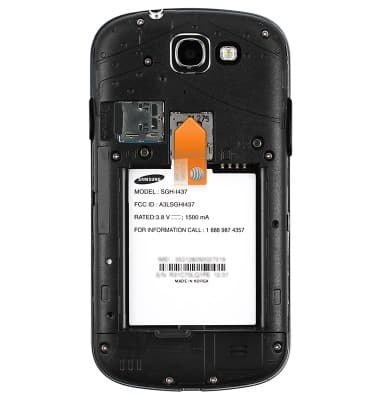

  4. Push the microSIM Card in all the way.
    device 2827/1429977.jpg

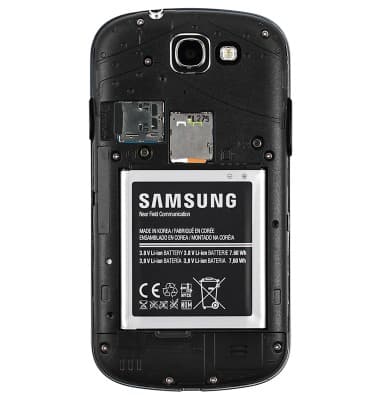

  5. Place the Battery into the Battery Tray then slide it into place making sure that the gold contacts are aligned.
    device 2827/1446220.jpg

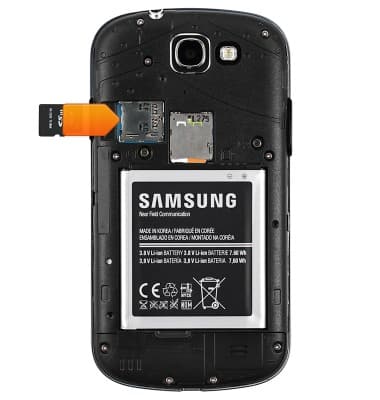

  6. Place the microSD Card into the microSD Card Tray.
    device 2827/1446221.jpg

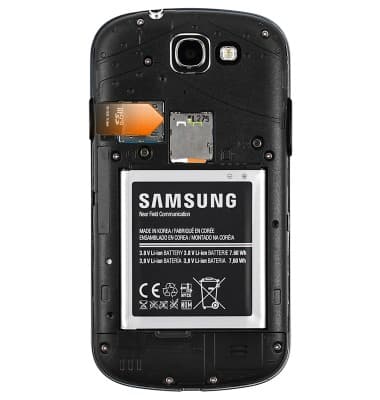

  7. Push the microSD Card in all the way.
    Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, tap Settings > More > Storage > Unmount SD Card.
    device 2827/1446222.jpg

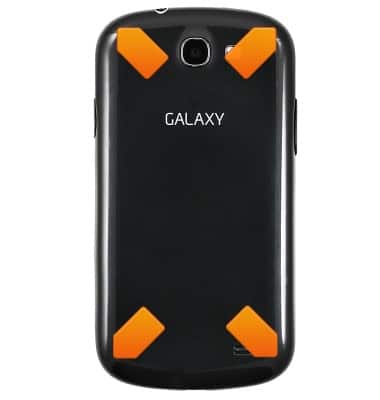

  8. Place the Battery Cover on, then push down around the edges to make sure it is secure.
    device 2827/1446223.jpg

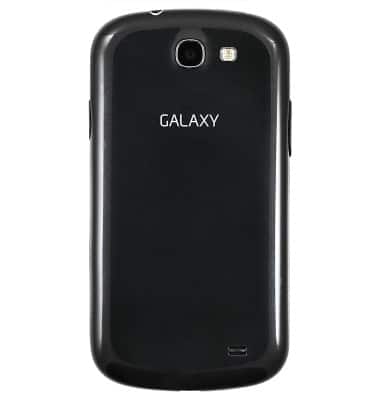

  9. The device is now ready for use.
    device 2827/1446224.jpg
