Device layout

This article provides an overview of the Device layout.


INSTRUCTIONS & INFO

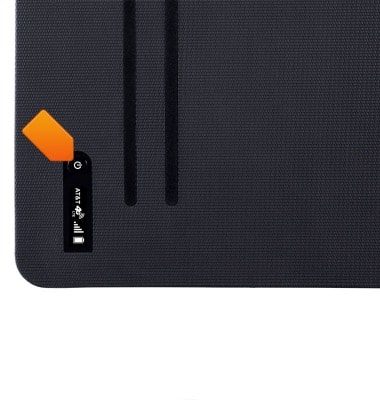

  1. Press and hold the Power button for 2 seconds to turn your AT&T Modio LTE case on/off. When the device is powered on, press to put the Organic LED (OLED) screen to sleep.
    device 2917/1504378.jpg

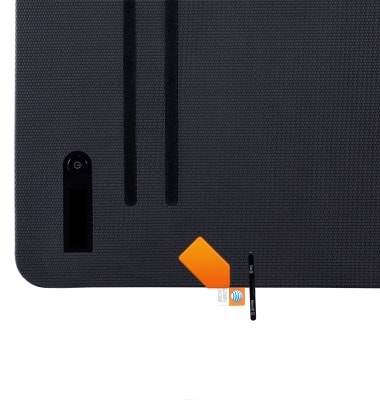

  2. The SIM card slot is located on the bottom of the device. The device uses a Micro SIM (3FF) card.
    Note: The AT&T Modio LTE case comes with a pre-installed SIM card.
    device 2917/1504379.jpg

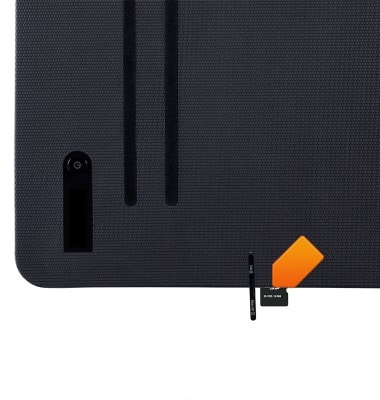

  3. The microSD card slot is located on the bottom of the device. A microSD card of up to 32GB can be used.
    Note: microSD card sold separately.
    device 2917/1504380.jpg

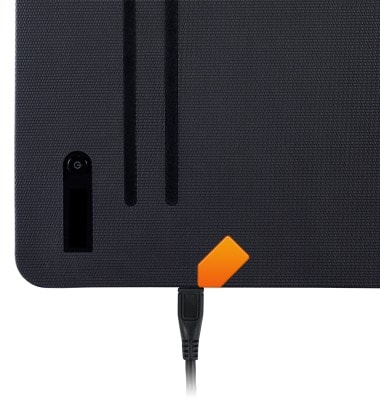

  4. The microUSB/Charging port is located on the bottom of the device.
    device 2917/1504458.jpg

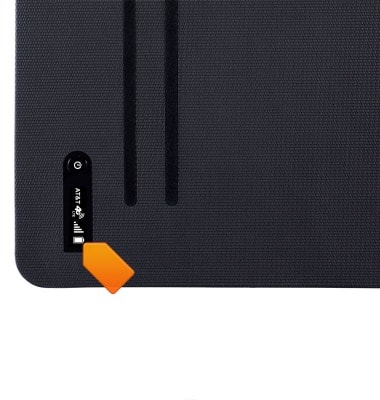

  5. The Battery indicator appears on the OLED screen on the inside left panel of the case.
    device 2917/1504459.jpg

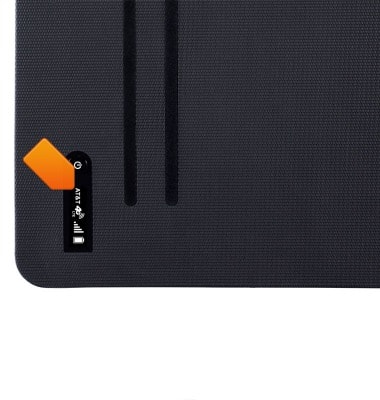

  6. The Network indicator appears on the OLED screen on the inside left panel of the case.
    device 2917/1504473.jpg

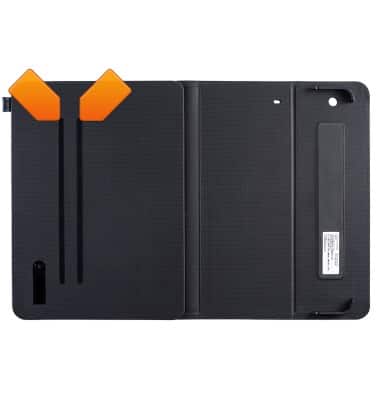

  7. The Magnetic locking strips hold your iPad mini in place when folded into an easel position for optimal viewing.
    Note: Align your iPad mini to the first locking strip for a 45 degree viewing angle. Align to the second strip for a 60 degree viewing angle.
    device 2917/1504474.jpg
