Device layout

Device layout

This article provides an overview of the Device layout.

Video

WATCH AND LEARN

INSTRUCTIONS & INFO

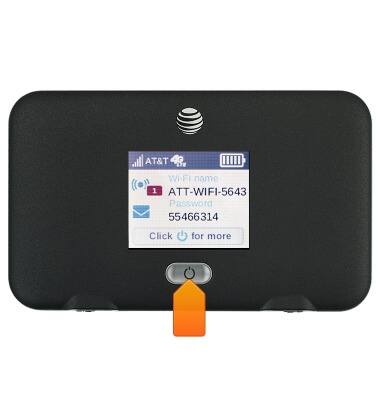

  1. The Power/Navigation button turns the device on and off, wakes up and puts to sleep the screen and Wi-Fi signal, and scrolls through the different screens (Home, Messages, Alerts, About Device). It is located underneath the display on the front of the device.
    device 2923/1506292.jpg

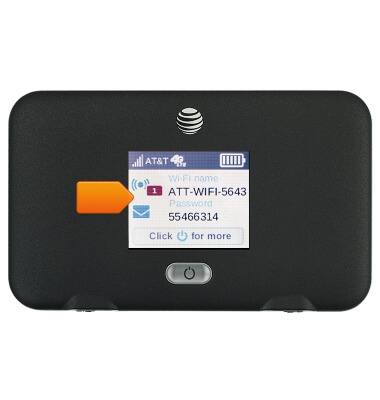

  2. The Screen is located on the face of the device. It is used to display all information of the device.
    device 2923/1506293.jpg

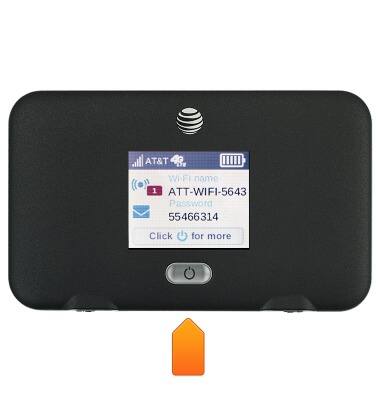

  3. The microUSB port is located at the bottom of the device.
    device 2923/1506294.jpg

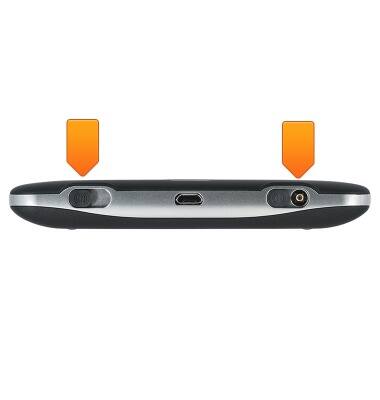

  4. Two external antenna ports are located at the bottom of the device.
    Note: For more information see the NETGEAR support page www.netgear.com/ATTUniteExpress.
    device 2923/1578829.jpg

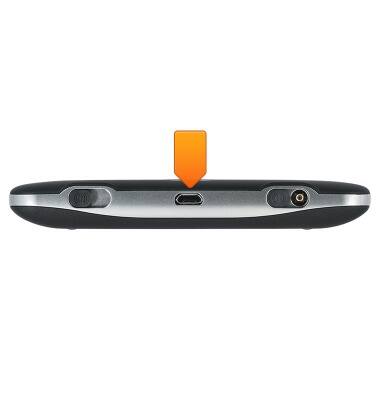

  5. The USB charging port is located at the bottom of the device.
    device 2923/1578830.jpg
