Device layout

Device layout

This article provides an overview of the device layout.


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

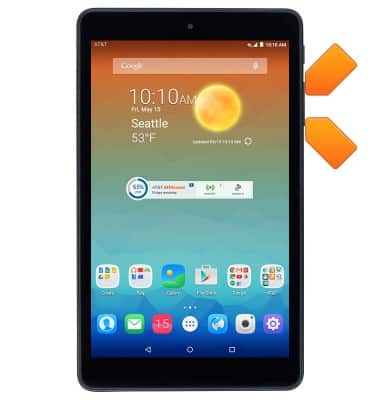

  1. Press the Volume keys to adjust media or notification volume.
    device 3016/1569596.jpg

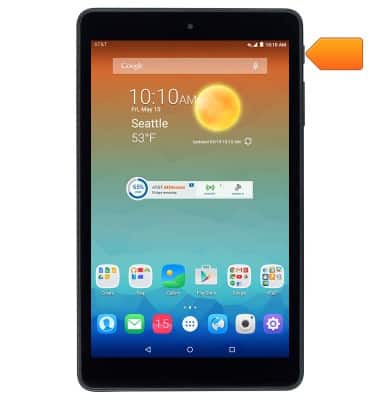

  2. Press the Power/Lock key to turn the device on or off, or put the display to sleep.
    device 3016/1569598.jpg

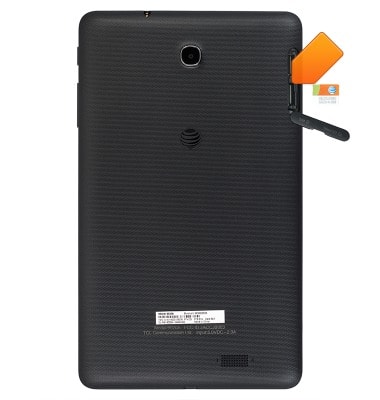

  3. The SIM card slot is located on the back of the device. The device uses a Micro-SIM card.
    device 3016/1569600.jpg

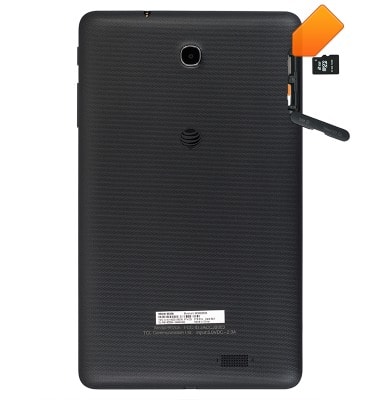

  4. The microSD card slot is located on the back of the device. A MicroSD (Sold separately) up to 32GB can be used.
    device 3016/1569602.jpg

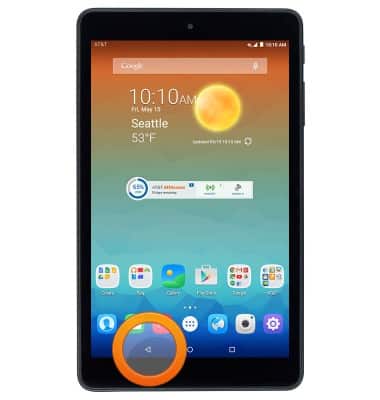

  5. Press the Back key to return to the previous screen.
    device 3016/1569603.jpg
  6. Press the Home key to return to the home screen.
    device 3016/1569604.jpg

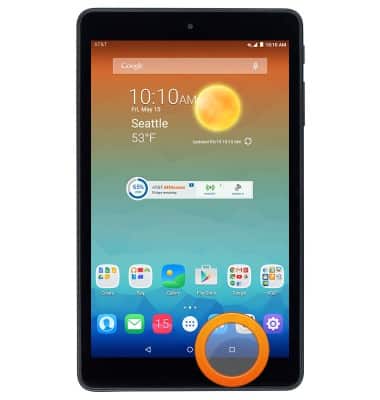

  7. Press the Recent Apps key to view a list of recently opened apps.
    device 3016/1569605.jpg

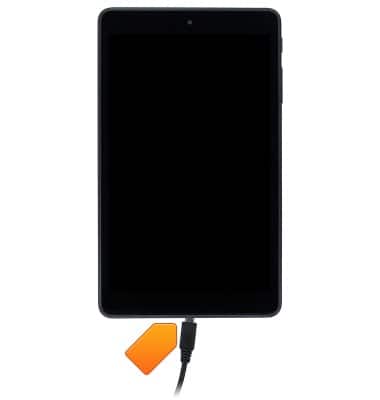

  8. The USB/Charging port is located on the bottom of the device.
    device 3016/1569606.jpg
  9. The Headphone jack is located on the top of the device.
    device 3016/1569607.jpg

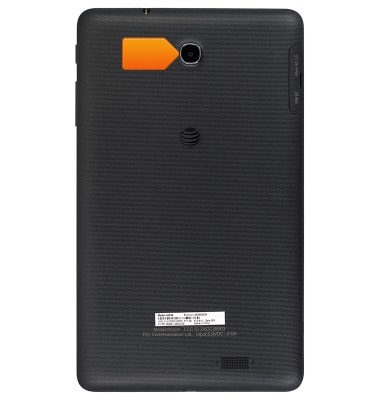

  10. The Rear camera is located on the back of the device.
    device 3016/1569609.jpg

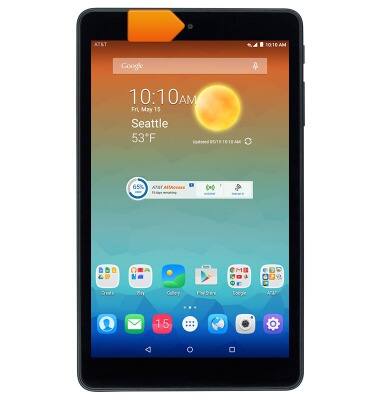

  11. The Front camera is located on the front of the device.
    device 3016/1569611.jpg
