Phone assembly

Phone assembly

Install and remove the SIM and battery.


INSTRUCTIONS & INFO

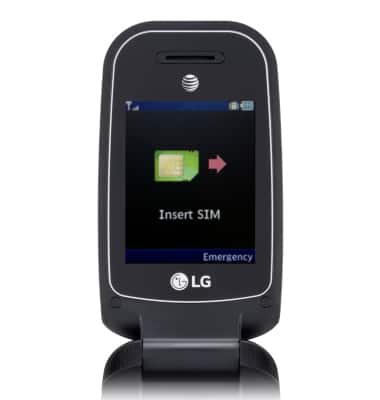

  1. If a SIM is not in the device the “No SIM card” message will display in the homescreen when the device is turned on.
    device 5055/9006107_01.jpg

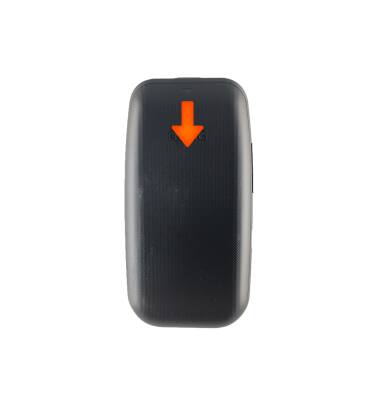

  2. The Sim Card tray is located under the back plate of the device. To take the plate off, slide it down.
    device 5055/9006107_02.jpg

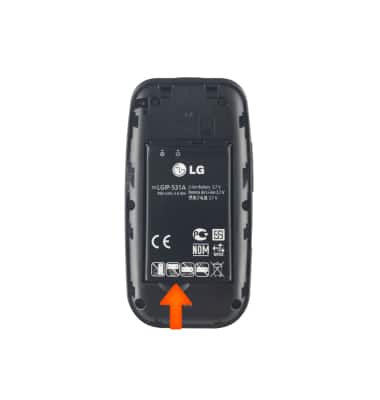

  3. Remove the battery by sliding down from the top of the battery cover, then lifting the cover.
    device 5055/9006107_03.jpg

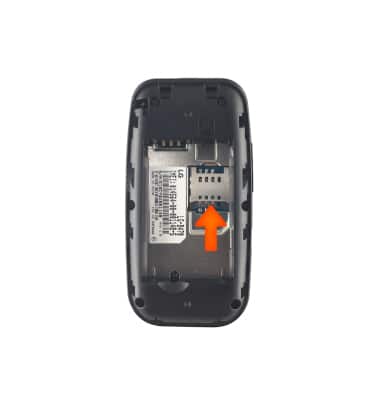

  4. Insert the SIM card into the flap making sure the gold contacts are facing away from you and the cut-off corner is at the bottom right.
    device 5055/9006107_04.jpg

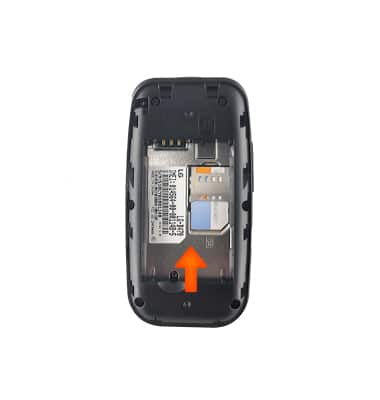

  5. Insert the Battery with the gold contacts touching.
    device 5055/9006107_05.jpg

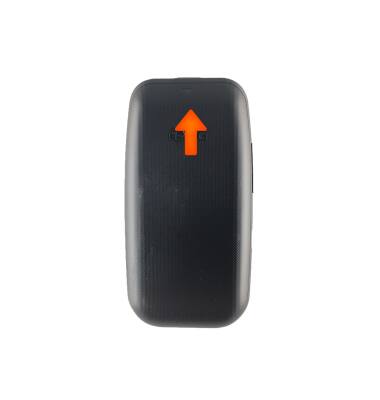

  6. Replace the Back cover, press along the edges so no gaps are present and slide the cover up.
    device 5055/9006107_06.jpg
