Phone Assembly

Learn how to install and remove the battery, SIM card, and memory card (microSD).


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

Prenote infoMicroSD/memory cards expand the storage capacity of device and are sold separately. This device can use a microSD card up to 512GB.

In this tutorial, you will learn how to:

• Remove back cover
• Remove battery
• Insert or remove SIM & microSD card
• Insert battery
• Replace back cover


The no sim icon No SIM icon will be displayed in the Notification bar when there is no SIM card in the device.




Remove back cover

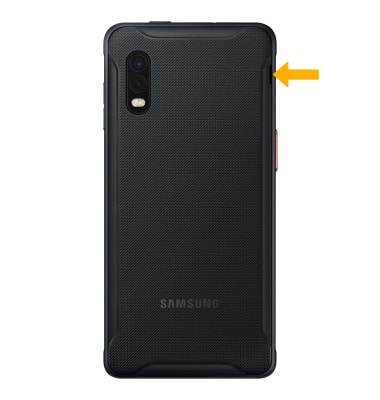

Remove the back cover by inserting your thumbnail into the notch on the top right of the device and pulling up.

Image 1





Remove battery

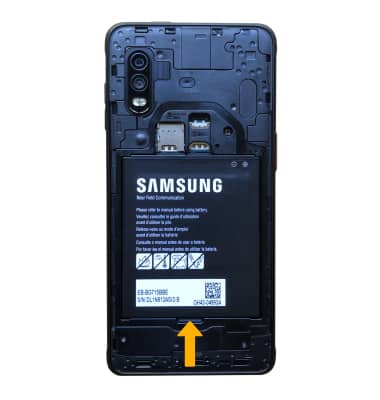

Remove the battery by gently pulling up from the notch on the bottom.

Image 2




Insert or remove SIM & microSD card


Image 3

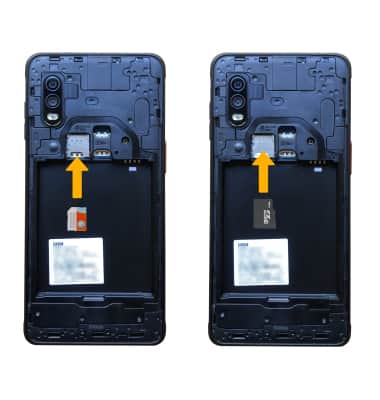

• With the battery removed, insert the Nano-SIM card into the SIM slot with the gold contacts facing down and the notched edge going in first. Push until it is all the way in. To remove, simply slide it out.
• With the battery removed, insert the microSD card into the microSD card slot with the gold contacts facing down and the notched edge going in first. Push until it is all the way in. To remove, simply slide it out.

Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, from the home screen swipe down from the Notification bar then select the settings Settings icon > scroll to and select Battery and device care > select Storagemenu Menu iconAdvanced > SD card > Unmount.




Insert battery

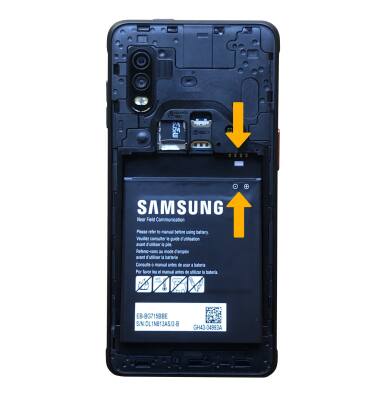

Place the battery in the battery slot with the gold contacts on the battery lined up with the gold contacts on the phone.

Image 4




Replace back cover

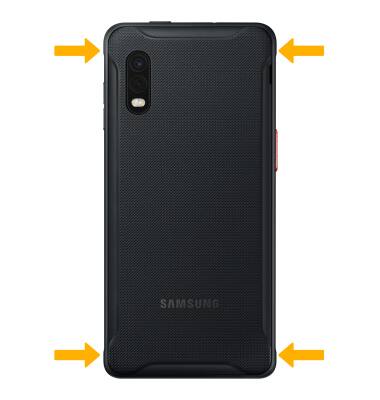

Place the cover on the back of the phone and gently push in until the cover clicks. The cover should be flush with the rest of the device.

Image 5




Storage

Internal Memory: Up to 64GB
External Memory: Up to 512GB
