Phone assembly

Phone assembly

How to install the battery, SIM, and memory card (for applicable devices).


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

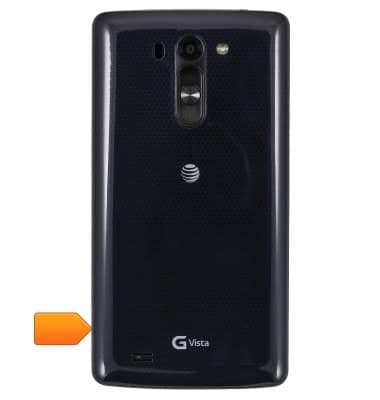

  1. Pry open and remove the Back cover using the indicated notch.
    device 3138/1639746.jpg

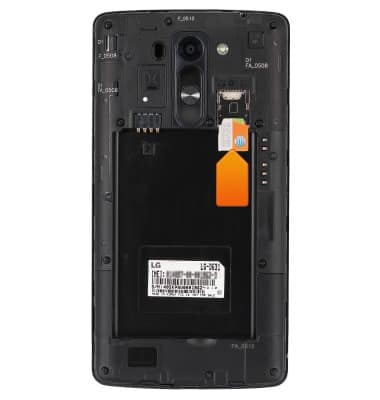

  2. Insert a Micro-SIM card into the SIM card slot as shown. Push the card into the slot until it is secured firmly in place.
    device 3138/1639747.jpg

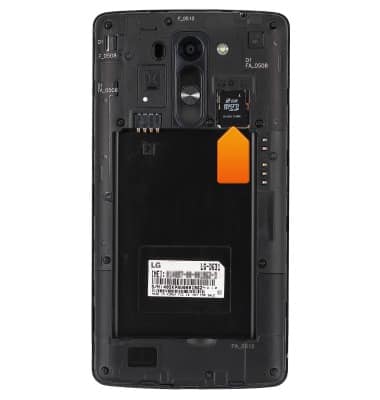

  3. Insert a microSD card (sold separately) into the memory card slot as shown. Push the card into the slot until it is secured firmly in place.
    Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, tap Settings > General > Storage > Unmount SD Card.
    device 3138/1639748.jpg

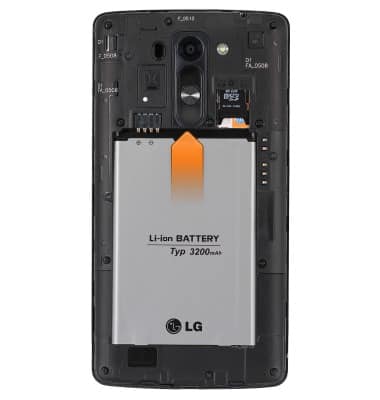

  4. Insert the Battery so that its contacts line up with those in the device interior.
    device 3138/1639749.jpg

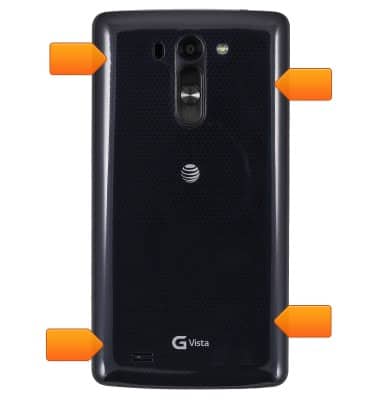

  5. Replace the Back cover. Press down around the edges of the device until the cover has clicked into place.
    device 3138/1639750.jpg

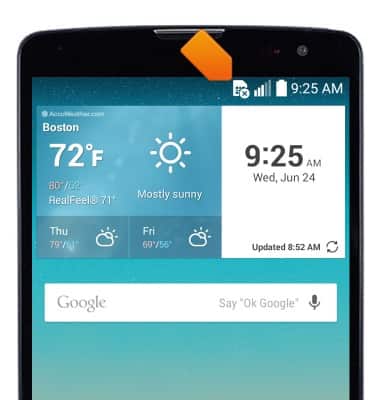

  6. If your device is powered on without a valid SIM card, the Missing SIM icon will display in the notification bar.
    device 3138/1639751.jpg
