Device layout

Device layout

Provides an overview of the device layout.


INSTRUCTIONS & INFO

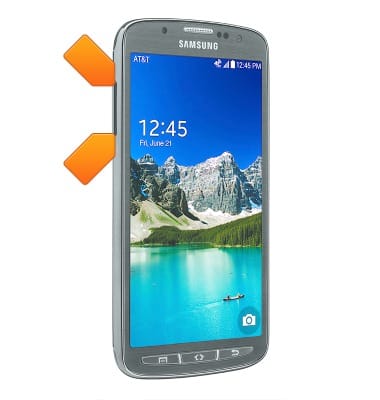

  1. Press the Volume keys to adjust media or call volume.
    device 3207/1679304.jpg

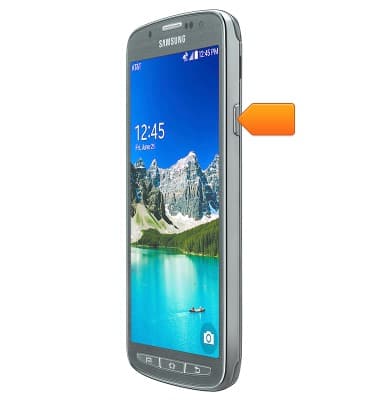

  2. Press the Power/Lock key to turn the device on or orr, or put the display to sleep.
    device 3207/1679303.jpg

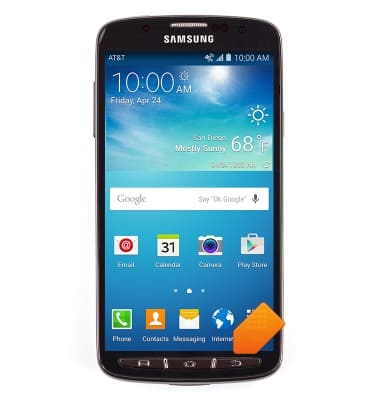

  3. Press the Back key to return to the previous screen.
    device 3207/1679302.jpg

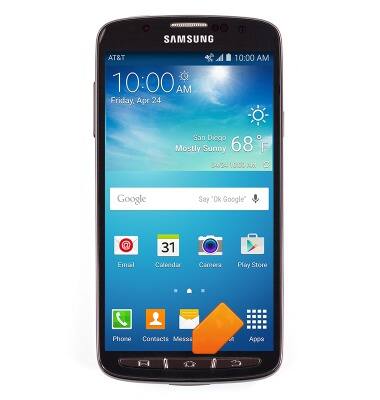

  4. Press the Home key to return to the home screen.
    device 3207/1679301.jpg

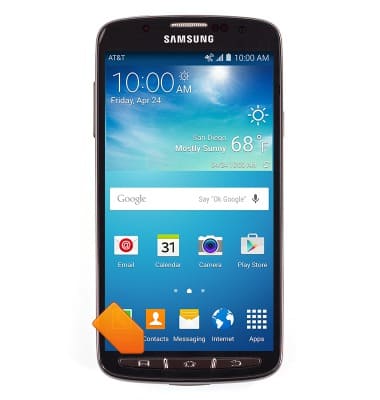

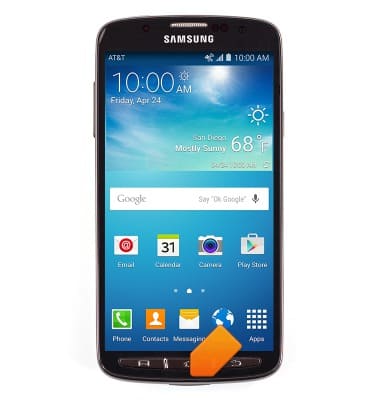

  5. Press the Menu key to view available menu options.
    device 3207/1679300.jpg

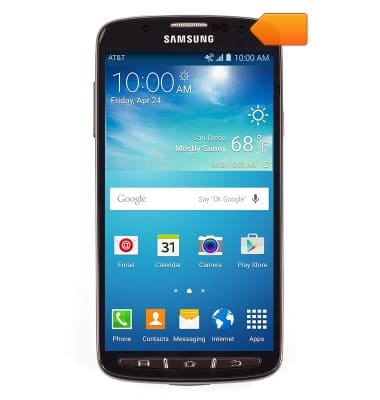

  6. The Front camera is located in the upper-right corner of the front of the device.
    device 3207/1679299.jpg
  7. The Rear camera is located on the back of the device.
    device 3207/1679298.jpg

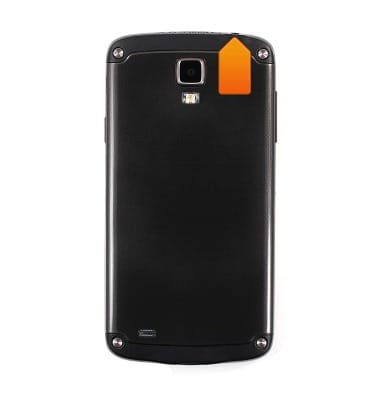

  8. The 3.5mm Headphone jack is located on the top of the device.
    device 3207/1679297.jpg
  9. The MicroUSB/Charging port is located on the bottom of the device.
    Note: Carefully open the charging port cover to access the charging port.
    device 3207/1679296.jpg

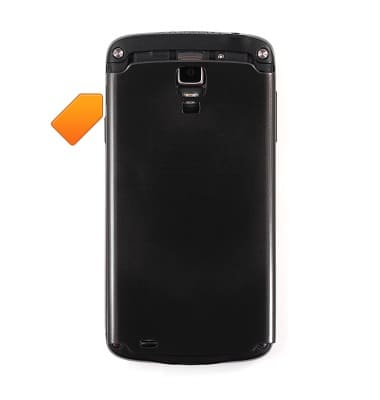

  10. The Back cover can be removed to access the Battery, Micro-SIM card slot, and MicroSD card slot.
    device 3207/1679295.jpg

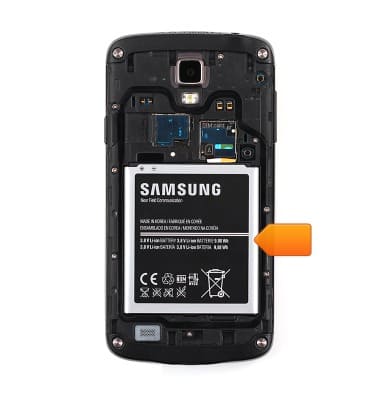

  11. The Battery is stored within the Battery port located inside the device, behind the back cover.
    device 3207/1679305.jpg

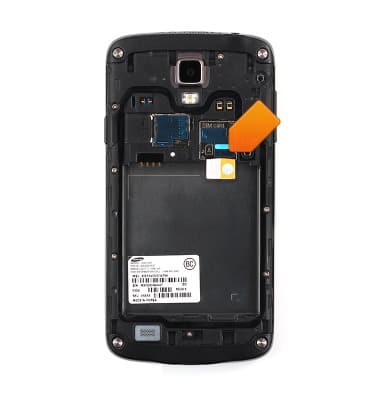

  12. The Micro-SIM card slot is located inside the device, behind the back cover.
    Note: MicroSD cards are sold separately.
    device 3207/1679306.jpg

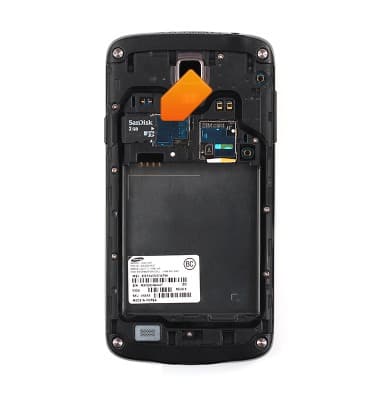

  13. The MicroSD card slot is located inside the device, on top of the SIM card slot.
    device 3207/1679307.jpg
