Device layout

Hardware features and software navigation of your device.

INSTRUCTIONS & INFO
  1. Press the Volume keys to adjust media or call volume.
    device 5005/9006101_01.jpg
  2. Press the Power/Lock key on the top of the device to turn it on or off, or put the display to sleep.
    device 5005/9006101_02.jpg
  3. The SIM card slot is located under the back cover of the device. The device uses a (Micro-SIM) card.
    device 5005/9006101_03.jpg

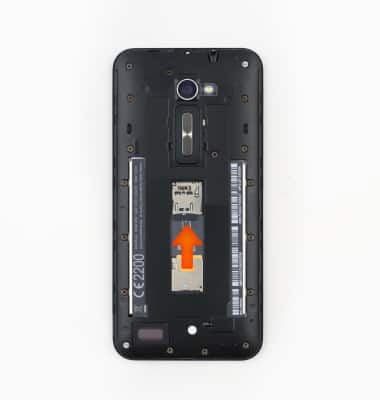

  4. The microSD card slot is located under the back cover of the device above the SIM card slot. A microSD card of up to 64 GB can be used.
    Note: MicroSD cards are sold separately.
    device 5005/9006101_04.jpg

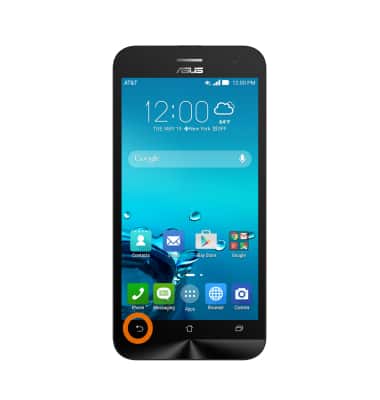

  5. Press the Back key to return to the previous screen.
    device 5005/9006101_05.jpg

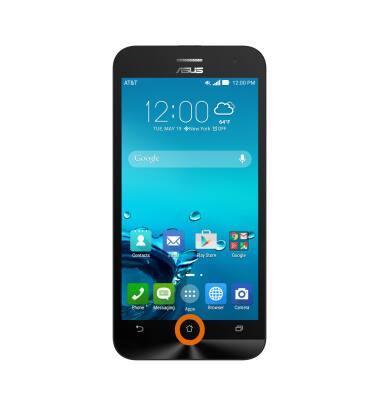

  6. Press the Home key to return to the home screen.
    device 5005/9006101_06.jpg

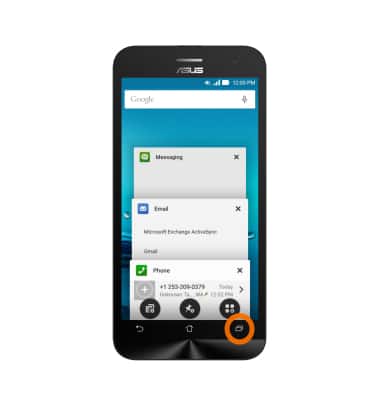

  7. Press the Recent Apps key to view a list of recently opened apps.
    device 5005/9006101_07.jpg
  8. The USB/Charging port is located on the bottom of the device.
    device 5005/9006101_08.jpg

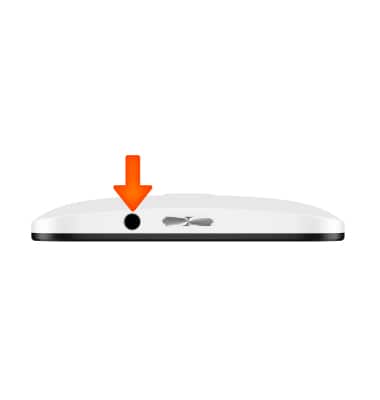

  9. The Headphone jack is located on the top of the device.
    device 5005/9006101_09.jpg

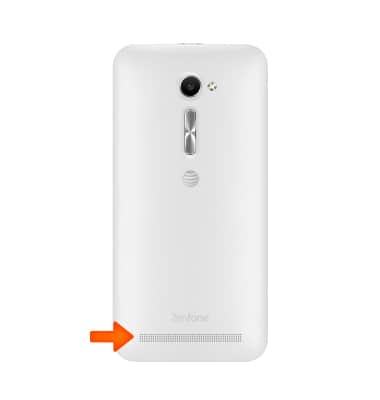

  10. The speaker is located on the back of the device.
    device 5005/9006101_10.jpg

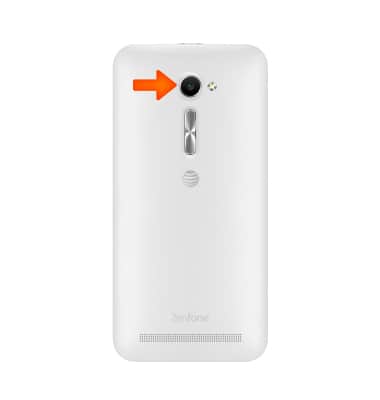

  11. The Rear camera is located on the back of the device.
    device 5005/9006101_11.jpg

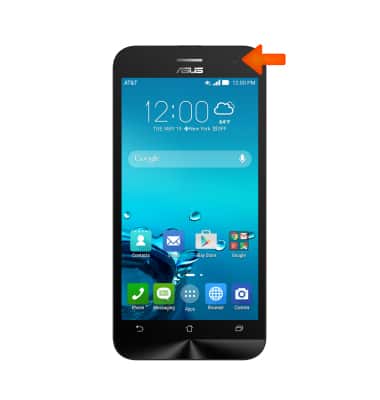

  12. The Front camera is located on the front of the device.
    device 5005/9006101_12.jpg

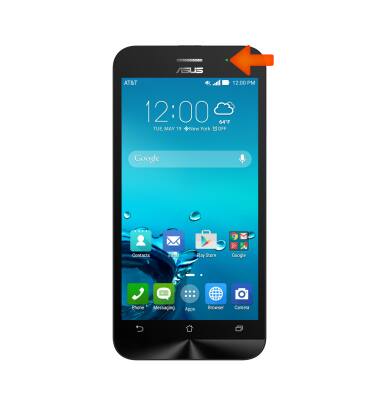

  13. The LED indicator will blink to alert of new notifications.
    device 5005/9006101_13.jpg
