Insert SIM & Memory Card

Install and remove the SIM and memory card (MicroSD).

INSTRUCTIONS & INFO

MicroSD/memory cards expand the storage capacity of device and are sold separately. This device can use a microSD card up to 400GB.

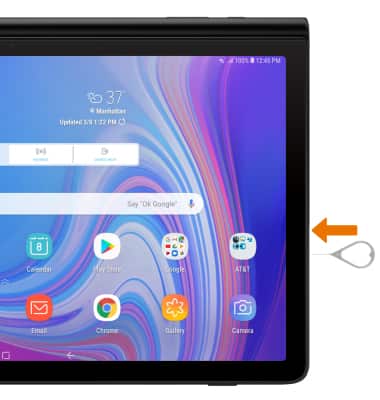

LOCATE SIM TRAY: The SIM & microSD tray is located on the right side of the device. To insert a SIM card, first insert a SIM tool or paperclip into the small hole to eject the SIM tray.

Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, swipe down from the Notification bar then select the Settings icon > Device maintenance > Storage > Menu icon > Storage settings > SD Card > UNMOUNT.

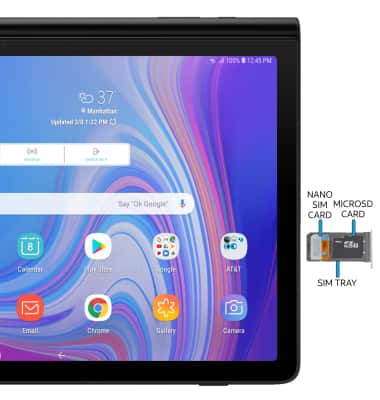

INSERT OR REMOVE SIM & MICROSD CARD:

° Insert or remove the Nano-SIM card into the SIM tray with the gold contacts facing down and the notched edge in the upper left.

°Insert or remove the microSD card into the SIM tray with the gold contacts facing down and the notched edge at the top.

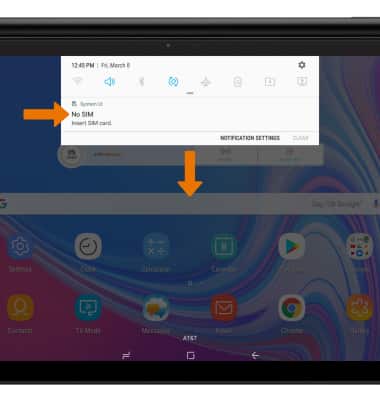

A No SIM notification will be displayed in Quick Settings when there is no SIM card in the device.
