In this tutorial, you will learn how to:

• View Data Usage & Set Usage Alert



View Data Usage & Set Usage Alert

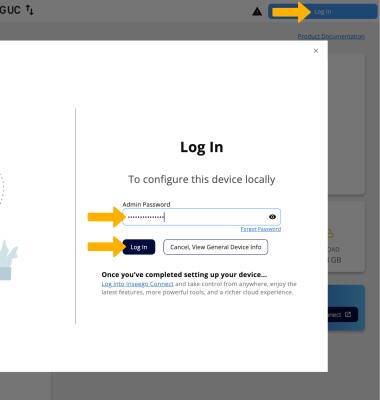

1. From your connected device's web browser, go to http://inseego.local or https://192.168.1.1. Click Log In. Enter your password, then click Log In.



Note: Ensure that your device is connected to the Inseego Wavemaker FX4200's Wi-Fi network.  For more information, please see the Connect Devices to Wi-Fi or Connect PC or Mac to Wi-Fi tutorials. If you haven’t logged into the Web admin page before, the default password will be displayed on the bottom of the device. You may be prompted to change the admin password. If you haven’t logged into the Web admin page before, the default password will be displayed on the Wi-Fi info screen. You will be prompted to change the admin password.



Image 1

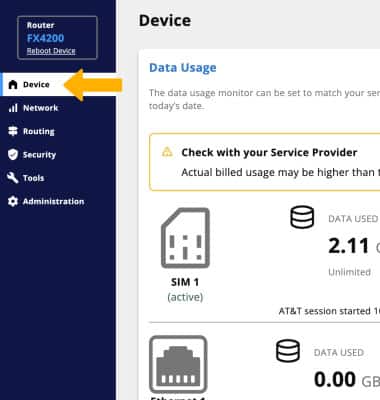

2. Click Device on the left side of the screen.



Image 2

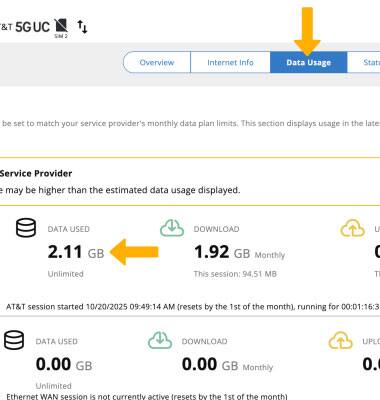

3. Click the Date Usage tab. Current data usage will be displayed.



Image 3

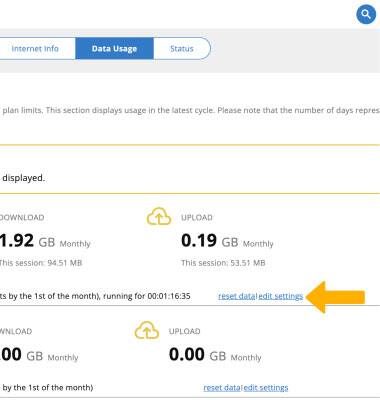

4. To enable a data usage limit, click edit settings.



Image 4

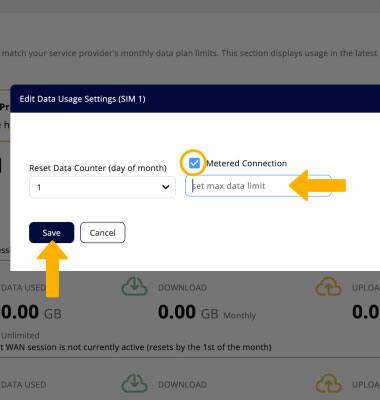

5. Select the Metered Connection checkbox. Enter the desired maximum data limit, then click Save.



Image 5
