Phone assembly

Phone assembly

Install and remove the SIM and battery.


INSTRUCTIONS & INFO

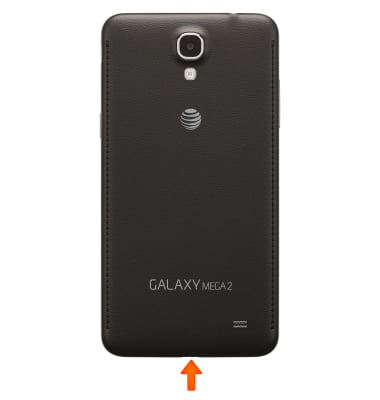

  1. To take the battery cover off, lift from the usb hole at the bottom of the phone.
    device 5034/9006107_01.jpg

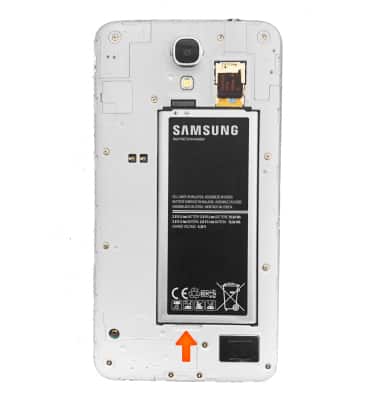

  2. Remove the battery by lifting the battery from the bottom notch.
    device 5034/9006107_02.jpg

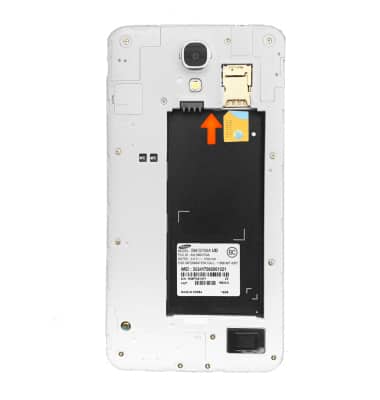

  3. Insert the microSIM card with gold contacts face down into the SIM card slot.
    device 5034/9006107_03.jpg

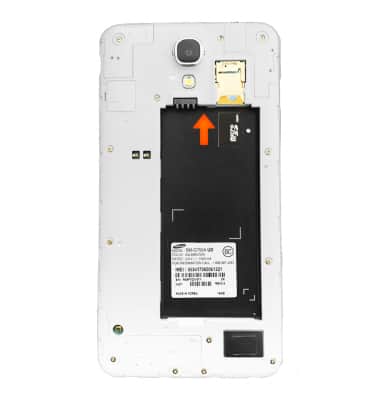

  4. To insert the optional SD card, slide the SD card gold contacts down into the SD card slot located above the SIM card slot.
    Note: SD cards are sold separately. To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, tap Settings > Storage > Unmount SD Card.
    device 5034/9006107_04.jpg

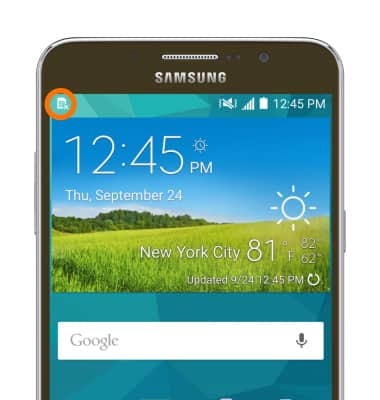

  5. If a SIM is not in the device the Missing SIM icon will display in the notifications bar.
    device 5034/9006107_05.jpg
