Device assembly

Device assembly

Install and remove the SIM and battery.


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

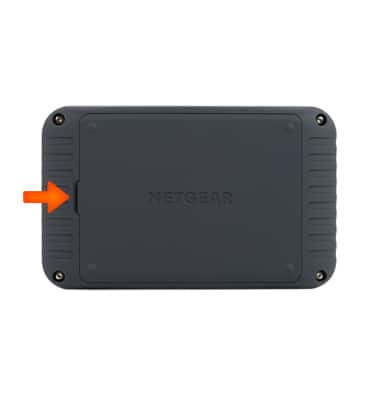

  1. To remove the SIM card, open the back cover of the device using the notch located on the left of the cover.
    Note: Your device will come with the Micro-SIM card preinstalled.
    device 5065/9006280_01.jpg

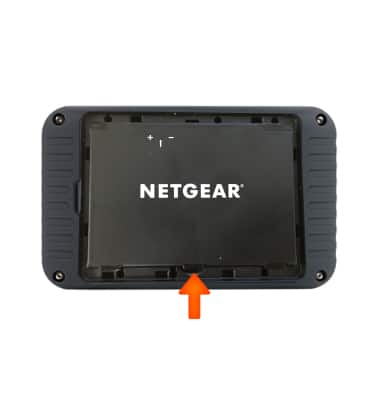

  2. Remove the battery using the notch located at the bottom of the battery.
    device 5065/9006280_02.jpg

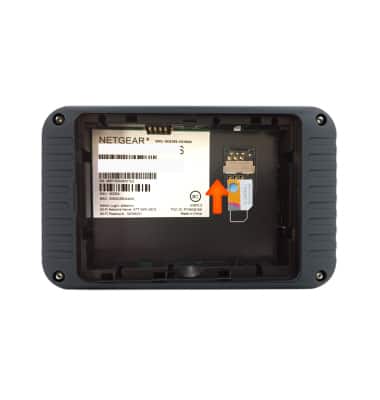

  3. Slide the SIM card out of or into the SIM card slot.
    device 5065/9006280_03.jpg

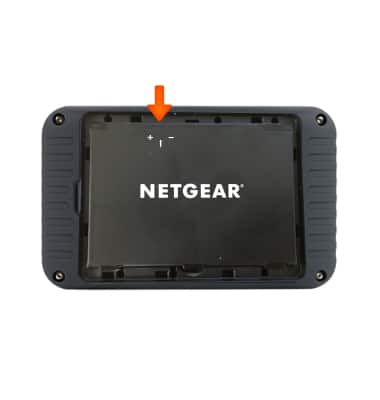

  4. Insert the battery, making sure the gold contacts touch.
    device 5065/9006280_04.jpg
  5. Reinsert the back cover of the device, pushing at the edges until it snaps into place. Firmly close the battery cover to ensure the device is water-resistant and dust proof
    Note: The AT&T Unite Explore meets US MIL-STD-810G for shock-resistance. Certified IP65 for protection against dust and water jets. Device will not operate under water and should be dried as quickly as possible when wet. Shock-resistant when dropped from ≤ 4 ft onto flat surface. Device may not perform as shown in all extreme conditions.
    device 5065/9006280_05.jpg

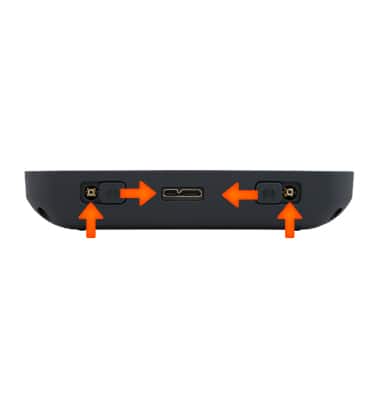

  6. To attach an external antenna, pop open and pull open the antenna port door, then insert the antenna into the port. The antenna is sold separately.
    Note: For more information, see the NETGEAR support article: External Antennas for AirCard products. When not using an external antenna firmly close the accessory ports and battery cover to ensure the device is water-resistant and dust proof.
    device 5065/9006280_06.jpg

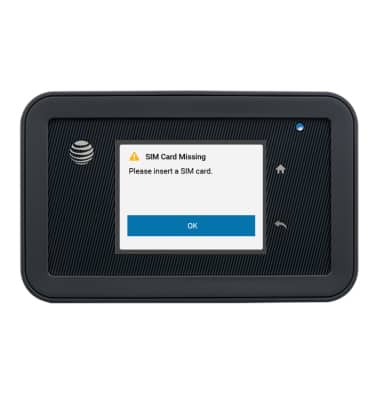

  7. If a SIM is not in the device the Missing SIM screen will display.
    device 5065/9006280_07.jpg
