Phone Assembly

Install and remove the SIM and battery.

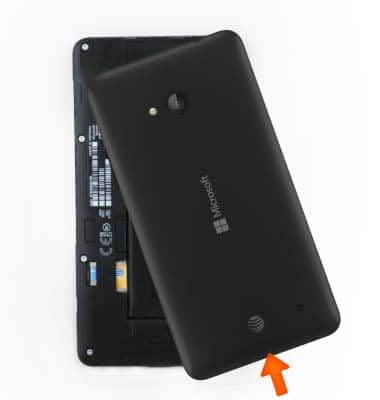

  1. To remove the back cover, with the back of the phone facing you, put the tip of your index finger in the seam between the screen frame and the back cover. Press the middle of the back cover, bend the cover open, and remove it.
    device 5090/9006107_01.jpg

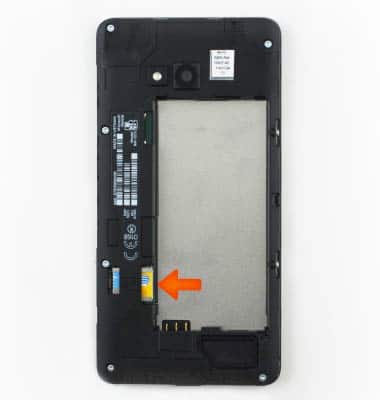

  2. Insert the microSIM card into the SIM slot, with the half edge facing the slot and the gold contacts facing down.
    Note: SIM will come preinstalled.
    device 5090/9006107_02.jpg

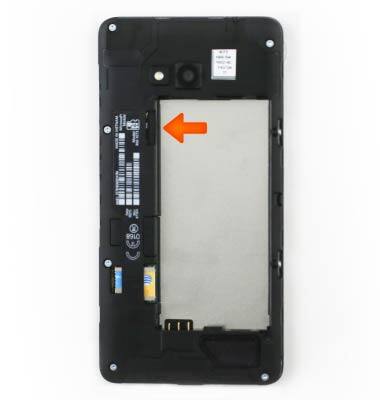

  3. Insert the microSD card into the microSD slot, with the jagged edge facing the top and the gold contacts facing down.
    Note: MicroSD cards are sold separately. To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, from the settings menu > storage sense > SD card > remove SD card > yes.
    device 5090/9006107_03.jpg

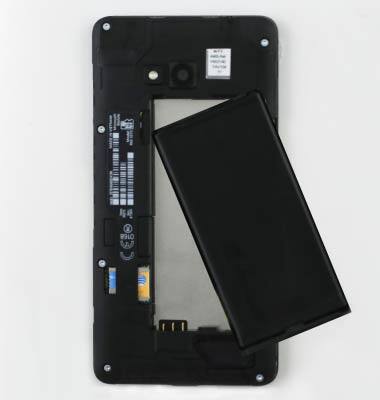

  4. The battery should click into place, with the gold contacts aligned.
    device 5090/9006107_04.jpg

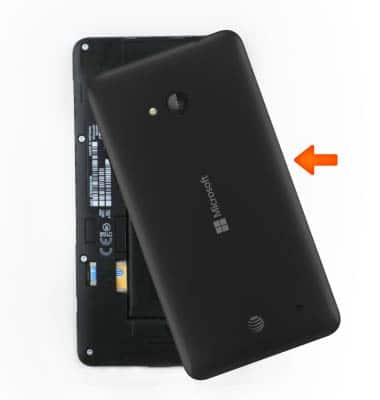

  5. Snap the Back cover back onto the Device when finished.
    device 5090/9006107_05.jpg

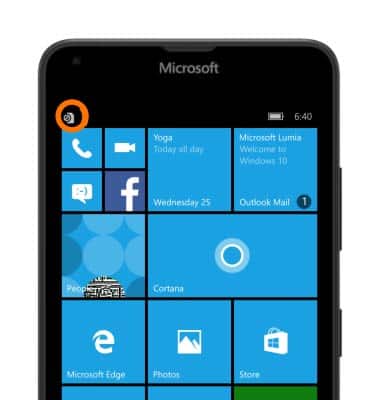

  6. If a SIM is not in the device or properly inserted the Missing SIM icon will be displayed.
    device 5090/9006107_06.jpg
