Insert SIM & Memory Card

MicroSD/memory cards expand the storage capacity of the device and are sold separately. This device can use a microSD card up to 2TB.

In this tutorial, you will learn how to:

• Locate SIM tray
• Insert or remove SIM & microSD card

The No SIM icon will be displayed in the Notification bar when there is no SIM card in the device.

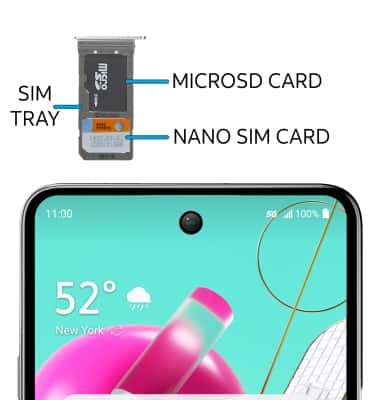

Locate SIM tray

The SIM & microSD tray is located on the top of the device. To insert a SIM or microSD card, insert a SIM tool into the small hole to eject the SIM and microSD tray.

Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, from the home screen, select the Settings app > scroll to and select Storage > select the Eject icon.

Insert or remove SIM & microSD card

• Insert or remove the Nano SIM card into the SIM tray with the gold contacts facing down and the notched edge on the bottom left. Gently press the SIM card in until it clicks into place.• Insert or remove the microSD card into the SIM tray with the gold contacts facing down and the notched edge on the bottom leftt. Gently press the microSD card in until it clicks into place.

Storage

Internal Memory: Up to 128GB
External Memory: Up to 2TB
