Overview

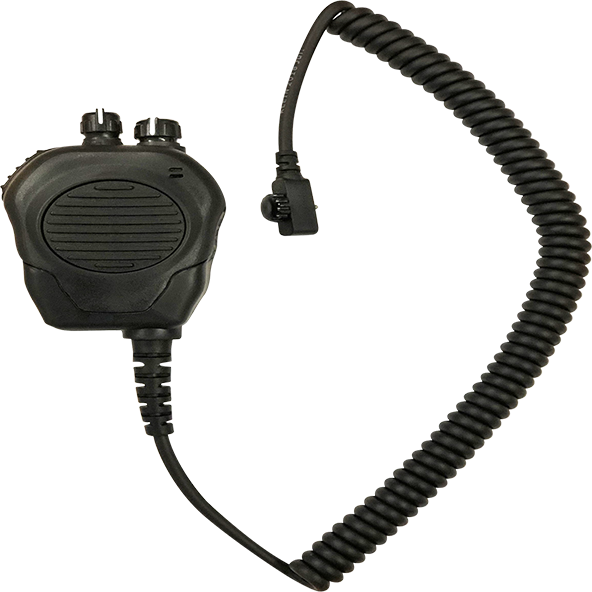

Klein VALOR Phoenix Remote Speaker Microphone (RSM) is the only RSM for PTT over cellular with a 16 channel selector and volume selector. VALOR RSM has a built-in amplifier for ultra-loud and clear audio, tested to deliver 104dB output. Klein custom designed the VALOR RSM to reliably connect to Sonim’s SecureAudio Connector on the XP5s and XP8 handsets. This allows the VALOR RSM connector to screw into the handsets and draw power. The VALOR RSM has a large front-facing and dual-thumb PTT buttons, compatible with heavy work gloves.
Key Features
Push-to-Talk simplex and half-duplex RSM
16 channel selector and volume selector with hard stop
Built-in amplifier for loud and clear audio
Front facing and thumb PTT buttons offer multiple use options
Rugged rubber overmold design, with contoured edges for comfortable grip
Bottom locking audio port for secure connection of listen-only headset
Optional listen-only headsets, eartips and in-vehicle holder available
Knowles Omni-directional Microphone
Microphone Sensitivity at 1kHz -45 to -39dB
Microphone Output Impedance at 1kHz 300 Max Ω
Microphone Signal / Noise Ratio at 1kHz 55-60+dB
Speaker Output Power NOM. 1.5W (Max 2W)/3W (Max 5W)
Speaker Output Level (SPL) 104 DB max
Speaker Flux Density: Gauss
Speaker Voice Coil 8 OHM +/- 15% / 4 OHM +/- 15%
Speaker Resonant Frequency 550 +/-20% HZ @ 1V
Speaker Impedance 4 Ω
Speaker Sensitivity 95 +/- 3dB
Speaker Distortion Factor 15% Max
Compatible with Sonim XP5s and XP8 handsets
Designed and Assembled in the USA
3 Year Limited Liability Warranty
Operating Temperature -40°C - +100°C
Klein VALOR Length 100 inches, Weight 214g
Packaged Product Dimensions 7 x 4 x 2.75 inches, Weight 263g"
