AT&T Trek 2 HD (K88)

Insert SIM & Memory Card

Install and remove the SIM and memory card (MicroSD).


Video

WATCH AND LEARN


INSTRUCTIONS & INFO

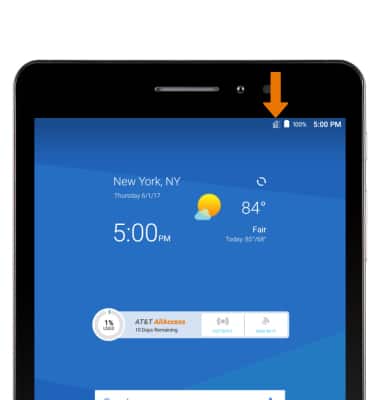

  1. The Missing SIM icon will be displayed in the Notification bar when there is no SIM card in the device.
    device 5168/9006419_01.jpg

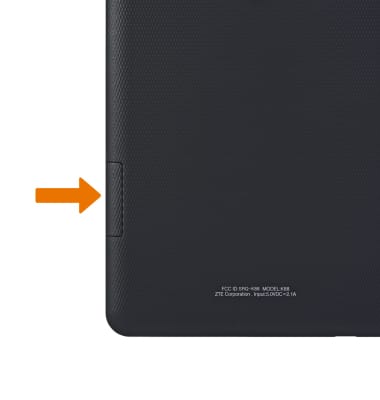

  2. The SIM tray is located on the right side of the device. To insert the SIM card, open the SIM slot cover on the side of the device.
    device 5168/9006419_02.jpg
  3. Insert the SIM card into the SIM tray, with the the gold contacts facing down and the notched edge on the upper right. Gently press the SIM card in until it clicks into place.
    device 5168/9006419_03.jpg

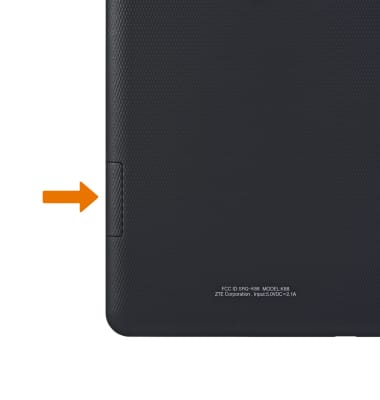

  4. The microSD tray is located on the right side of the device next to the SIM card slot. To insert a microSD card, open the microSD tray cover on the side of the device.
    device 5168/9006419_04.jpg

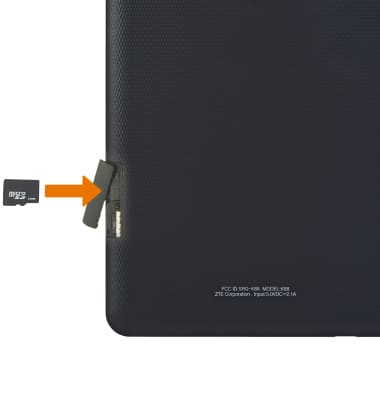

  5. Insert the microSD card into the microSD tray, with the the gold contacts down and the notched edge on the bottom right. Gently press the microSD card in until it clicks into place.
    Note: MicroSD/memory cards expand the storage capacity of device and are sold separately. To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, swipe down from the Notification bar > select the Setting icon > Storage > SD card > Remove SD card.
    device 5168/9006419_05.jpg
