Device Assembly

Install and remove the SIM and battery.


1. If a SIM is not in the device, the Signal Strength icon will blink red.

Step 1

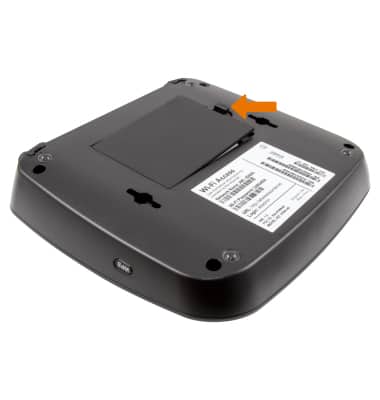

2. INSERT/REMOVE SIM CARD & BATTERY: Use the latch to remove the back cover.

Step 3

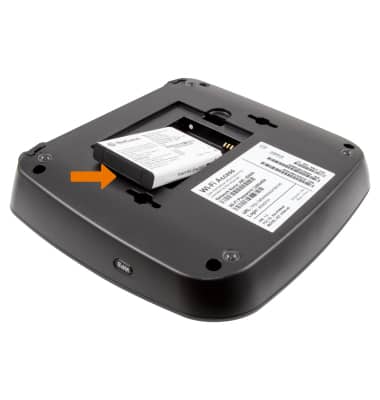

3. Remove the battery by gently pulling up from the notch on the bottom.

Step 3

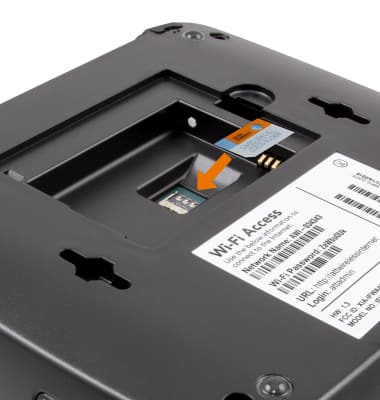

4. Slide the nano SIM into the SIM slot with the metal contacts facing down.

Step 4

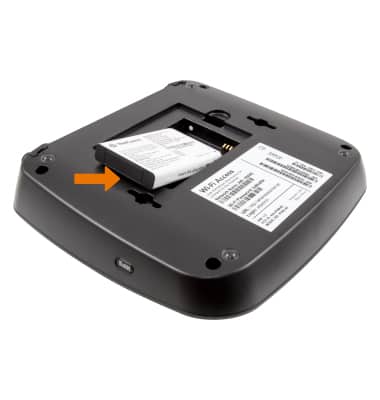

5. Place the battery in the battery slot with the gold contacts on the battery lined up with the gold contacts on the device.

Step 5

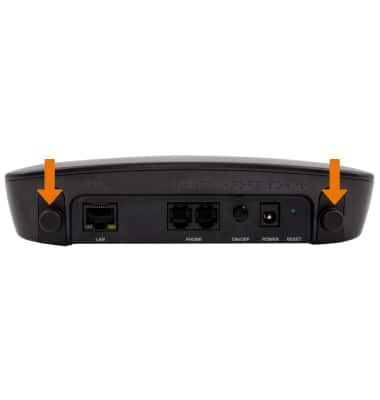

6. ATTACH EXTERNAL ANTENNA (optional): From the back of the device, remove the plastic covers then insert the antenna into the SMA ports.

Step 6
